Aktakom Power Manager Express Pro software allows users to remotely control their AKTAKOM power supply via PC. It features Measure, Set Up and Initialization functions, as well as, automatic switching off of the outputs of the device at the end of the program. The program follows basic configurations and some features of operation as the device control panel.
Any first command sent from a PC to a power supply using USB
Switch to manual control mode
Turn the power supply off and on

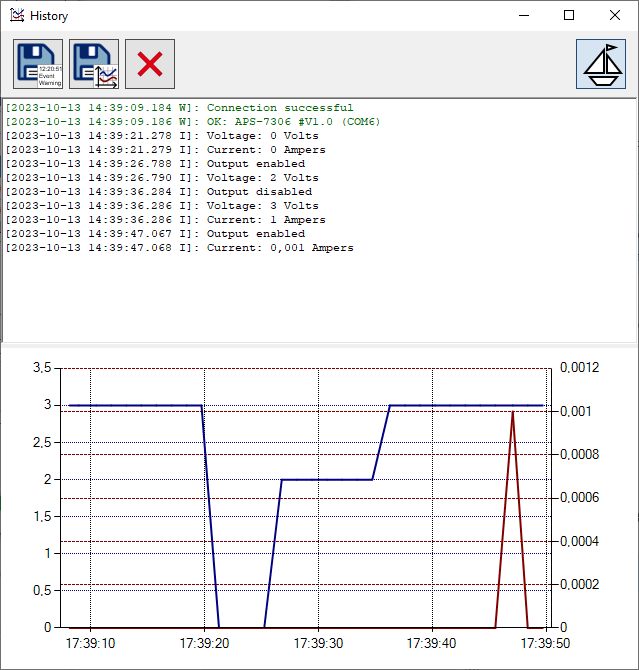

Displaying the history of load voltage and current values
Yes

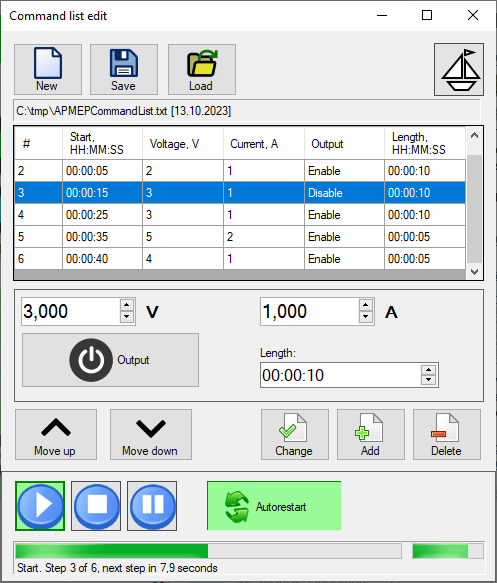

Work according to a given schedule of current and voltage values
Yes
Saving and importing current and voltage schedules
Yes
Current time clock
On / Off
Button names
On / Off
Help
Yes
Language support
EN, ES
News
On / Off
Note: Any first command sent from a PC to a power supply using USB switches power supply to remote control mode. To switch power supply back to manual control mode please turn the power supply off and on.
The software is multifunctional and interactive, its pre-set function allows for faster set up and flawless changes. Besides functionality the software has "News" button shows or hides Aktakom news feed. "Info" button displays the information about the program and connected device, and of cause the "Help" button for those who are stuck and need a little help.
Standard package
The software in the standard package of the device has no physical media (CD) and can be downloaded at www.tmatlantic.com after the purchasing and registering the equipment with a serial number. This software is not free however its cost is included into device value.
Control via PC

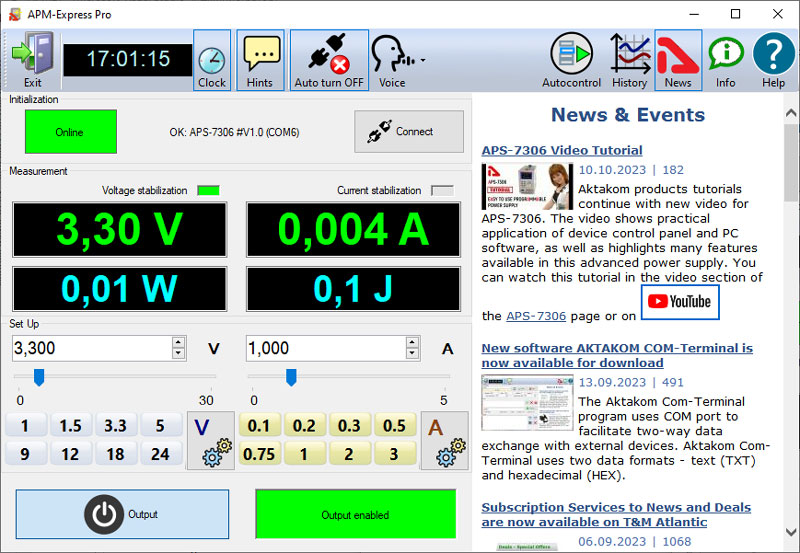

Upper panel buttons of the main window:
Figure 1.
"Exit" button terminates the program operation.
The button with a clock icon shows or hides the clock display on the keypad.
"Hints" button shows or hides the keys caption text.
Button "Turn OFF when closed" - enables/disables the mode of automatic switching off of the outputs of the device at the end of the program.
"News" button shows or hides Aktakom news feed.
"Info" button displays the information about the program and connected device.
"Help" button recalls this help file.
Figure 2.
The Initialization box is used to connect the device to the program. If the device was already connected to the PC via USB when the program was started, the program will connect it automatically. If you connected the device later, click the Connect button. After successful connection of the device, the name and serial number of the device will be displayed in the initialization block. Otherwise, an error message will be displayed there.
Figure 3.
The Measurement box shows the current state of the device - switching on outputs, output voltage and current, stabilization mode - by voltage or current.
Figure 4.

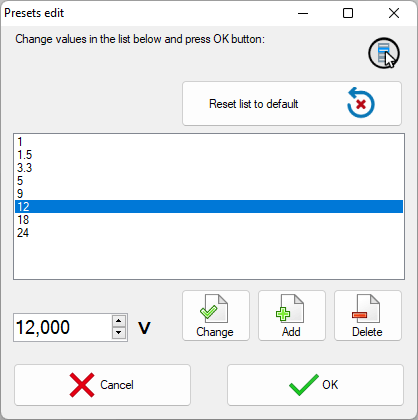

The Set Up box allows you to control the parameters of the device. Panels with shortcut buttons are configured using the dialog Pre-set settings.
Button Output - turns on / off the outputs of the device.
Voice guidance works in all languages installed in the operating system on your PC. Up
Is a license key needed to work with Aktakom Power Manager Express Pro
To work with Aktakom Power Manager Express Pro a license key is needed.
The license key (as a set of characters) is available in the documentation included with the device (usually on the last page of the User Manual)
Without a key, the program will work, but when connected to the device, it will ask for the license key
The License key was successfully accepted in the AKTAKOM program, but the key request appeared again. Why?
This happens when the license key is incorrect or the license list was cleared or the system was reinstalled on the PC. The AKTAKOM software will accept and remember any key, even if the device has never been connected. But when trying to connect the device, the program will check this key, and if it is not suitable, it will return an error. (Access Denied) Up
Is one license key enough for one program to work with several devices?
Several license keys are required for one program to work with several devices.
For the first connection of each device, its own key is required.
License key (as a set of characters) is available in the documentation included with the device (usually on the last page of the User Manual). Up
Can I Turn-Off News and Events feed on my Control Panel?
To turn off the News and Events feed click on Aktakom Logo as shown on the picture.
To turn it back on click on the Logo again. Up
