Supported OS: Windows 10 x32, Windows 10 x64, Windows 11
Version: 1.0.0.5
Free for registered users
The software in the standard package of the device has no physical media (CD) and can be downloaded at www.tmatlantic.com after the purchasing and registering the equipment with a serial number. This software is not free however its cost is included into device value.
We recommend you save a copy of your software. If lost: registered user can download software free of charge during warranty period. After warranty period has expired the software could be purchased and downloaded from the tmatlantic website. The software could be written on the CD and shipped to the customer for an additional fee and only upon request.
Download (1.41 Mb) Product registration required
Description
Videos
Application
FAQ
Descripción

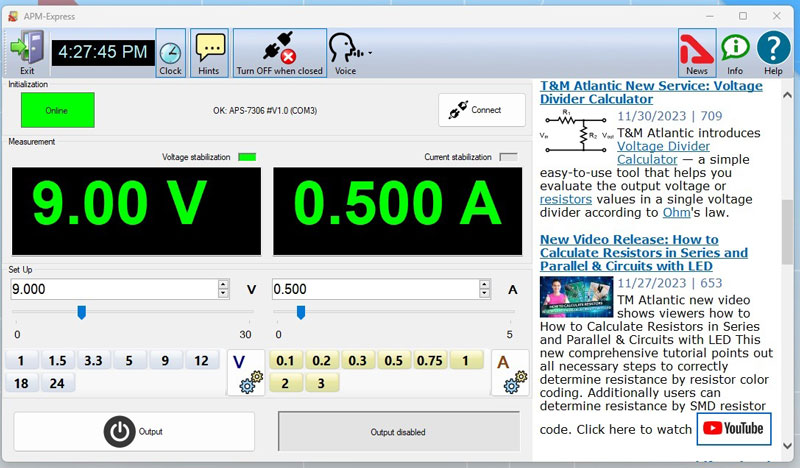

Aktakom Power Manager Express software allows users to remotely control their power supply via PC. It features Measure, Set Up and Initialization functions, as well as, automatic switching off of the outputs of the device at the end of the program. The program follows basic configurations and some features of operation as the device control panel.
Any first command sent from a PC to a power supply using USB
Switch to manual control mode
Turn the power supply off and on
Displaying the history of load voltage and current values
No
Work according to a given schedule of current and voltage values
No
Saving and importing current and voltage schedules
No
Current time clock
On / Off
Button names
On / Off
Help
Yes
Language support
EN, ES
News
On / Off
Note: Any first command sent from a PC to a power supply using USB switches power supply to remote control mode. To switch power supply back to manual control mode please turn the power supply off and on.
The software is multifunctional and interactive, its pre-set function allows for faster set up and flawless changes. Besides functionality the software has "News" button shows or hides Aktakom news feed. "Info" button displays the information about the program and connected device, and of cause the "Help" button for those who are stuck and need a little help. "Voice" button selects a Windows voice guide that will announce application events to you. Select the "No voice" option to disable the voice guide.
Standard package
The software in the standard package of the device has no physical media (CD) and can be downloaded at www.tmatlantic.com after the purchasing and registering the equipment with a serial number. This software is not free however its cost is included into device value.
Control via PC

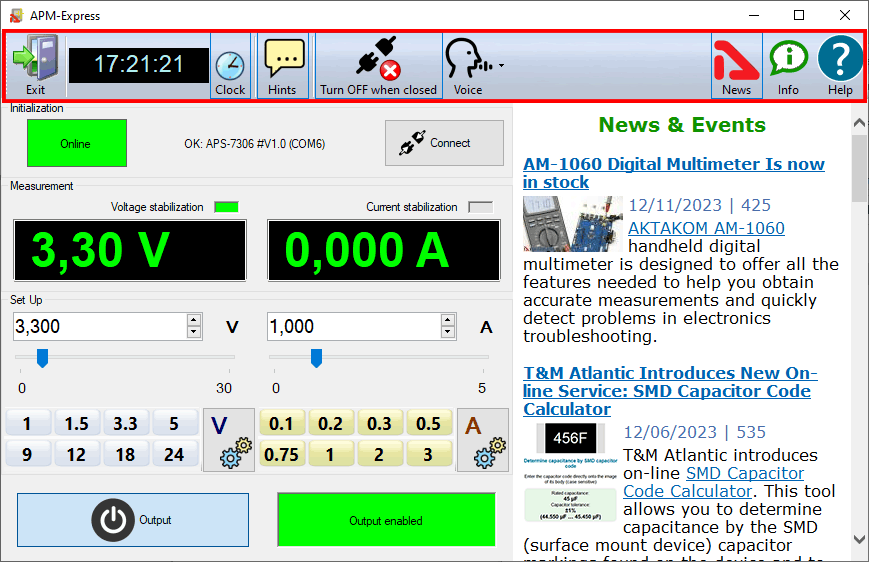

Upper panel buttons of the main window:
Figure 1.
"Exit" button terminates the program operation.
The button with a clock icon shows or hides the clock display on the keypad.
"Hints" button shows or hides the keys caption text.
Button "Turn OFF when closed" - enables/disables the mode of automatic switching off of the outputs of the device at the end of the program.
"News" button shows or hides Aktakom news feed.
"Info" button displays the information about the program and connected device.
"Help" button recalls this help file.
Figure 2.

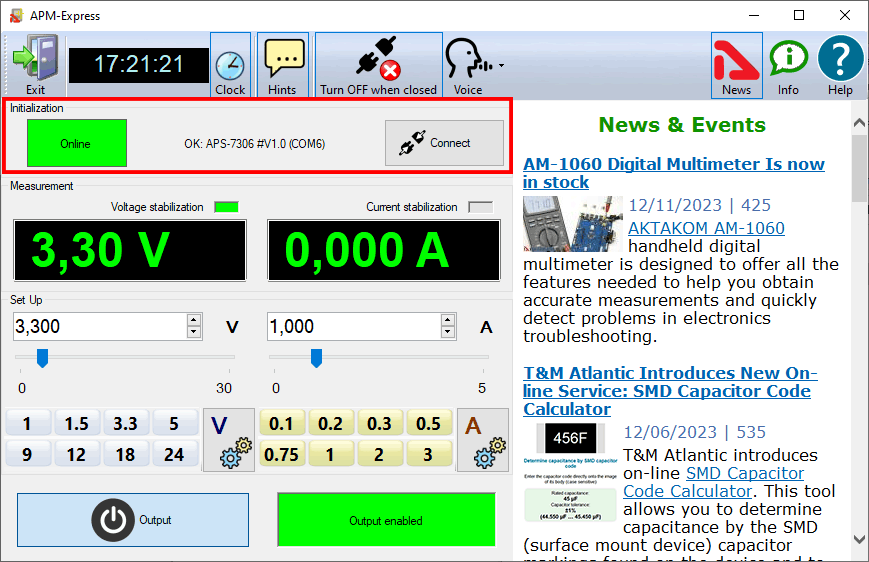

The Initialization box is used to connect the device to the program. If the device was already connected to the PC via USB when the program was started, the program will connect it automatically. If you connected the device later, click the Connect button. After successful connection of the device, the name and serial number of the device will be displayed in the initialization block. Otherwise, an error message will be displayed there.
Figure 3.

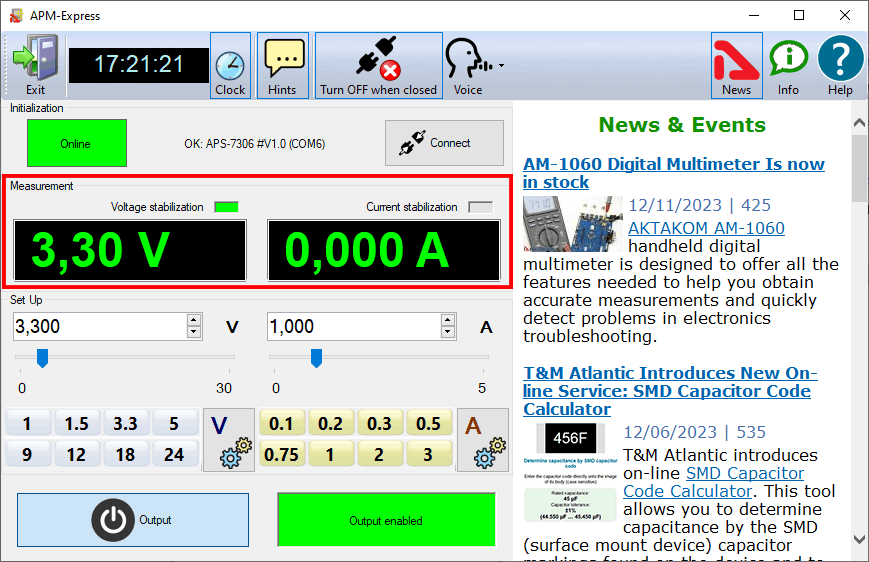

The Measurement box shows the current state of the device - switching on outputs, output voltage and current, stabilization mode - by voltage or current.
Figure 4.

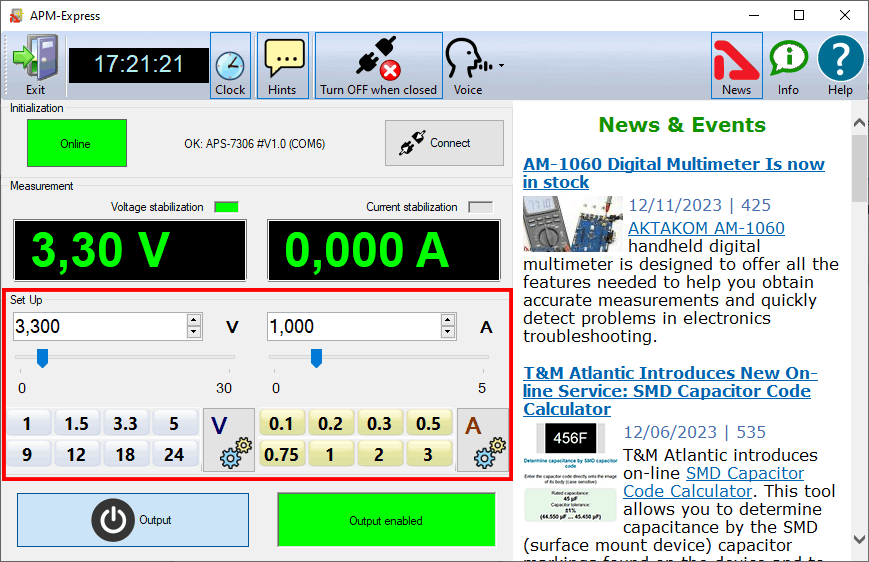

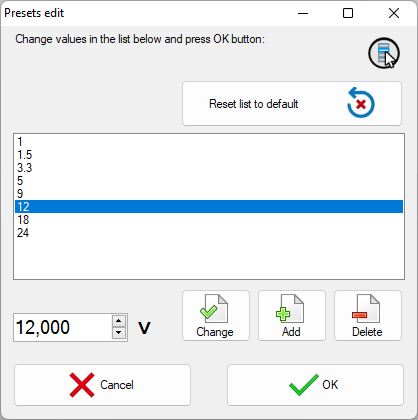

The Set Up box allows you to control the parameters of the device. Panels with shortcut buttons are configured using the dialog Pre-set settings.
Button Output - turns on / off the outputs of the device.
Voice guidance works in all languages installed in the operating system on your PC. Up
Is a license key needed to work with this program
License key is not needed to work with this program
And the program does not ask for it. Up
Can I Turn-Off News and Events feed on my Control Panel?
To turn off the News and Events feed click on Aktakom Logo as shown on the picture.
To turn it back on click on the Logo again. Up
Troubleshooting LED Stip Using a Power Supply with Voice Guide Software
Aktakom Power Manager Express software permite a los usuarios controlar remotamente su suministro de energía a través de una PC. Cuenta con funciones de Medición, Configuración e Inicialización, así como apagado automático de las salidas del dispositivo al final del programa. El programa sigue configuraciones básicas y algunas características de operación como el panel de control del dispositivo.
