APS-3xxxLx_SDK_MS_VB Software Development Kit

APS-3xxxLx_SDK_MS_VB Software Development Kit
Click an image to enlarge
Brand: AKTAKOM
Compatible with:
APS-3103L DC Power Supply Remote Controlled 120V / 3A 1 channel programmable
APS-3320L DC Power Supply Remote Controlled 30V / 20A 1 Channel programmable
APS-3320LS DC Power Supply Remote Controlled 30V / 20A 1 Channel programmable

For Windows®
Supported OS: Windows XP x32, Windows XP x64, Windows 7 x32, Windows 7 x64, Windows 8 x32, Windows 8 x64, Windows 8.1 x32, Windows 8.1 x64, Windows 10 x32, Windows 10 x64
Version: 1.0.0.8

Retail price: $50.00

Buy Add to cart

Download
(5.82 Mb)
How to download

The APS-3xxxLx SDK is designed to help users in creating their own applications for the supported hardware. This SDK contains the device driver for controllable power supplies from the series of AKTAKOM Power Supplies APS-31xxL, APS-33xxL, APS-36xxL.

The driver contains all necessary functions for the device operation and represents dynamic-link library (DLL) Windows followed with the header file for the C programming language, with LabWindows function tree and the tool library for LabVIEW which fully repeats it.

Additionally (in contrast to APS-3xxxLx_SDK_Base Software Development Kit) it contains the examples of programming in the following development environments: Borland C++ Builder, MS Visual C++, NI LabWindows/CVI, NI LabVIEW and MS Visual Basic.

The driver library function can be also called from any programming environment with the ordinary for DLL method. As an example of such driver use there are projects for Borland C++ Builder 6, NI LabWindows/CVI and MS Visual C++.

The main advantage of the full SDK package is fast development of applications basing on the programming examples for different programming environments allowing you to use the proposed typical structure of the application.

The SDK Contains:

  • dynamic-link library (DLL) Windows, contains all the functions required to control the device
  • library header file in the C programing language
  • Help file that describes all library functions
  • function tree which corresponds to the library and an application example for NI LabWindows/CVI environment
  • functions palette which corresponds to the library an application example for NI LabVIEW environment
  • example of graphical application for Borland C++Builder environment (all necessary source files of the project)
  • example of console application for Microsoft Visual C++ environment (all necessary source files of the project)

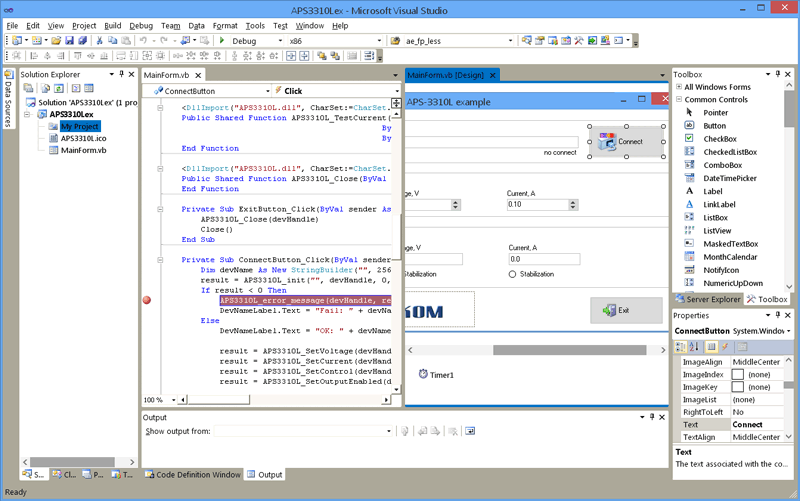

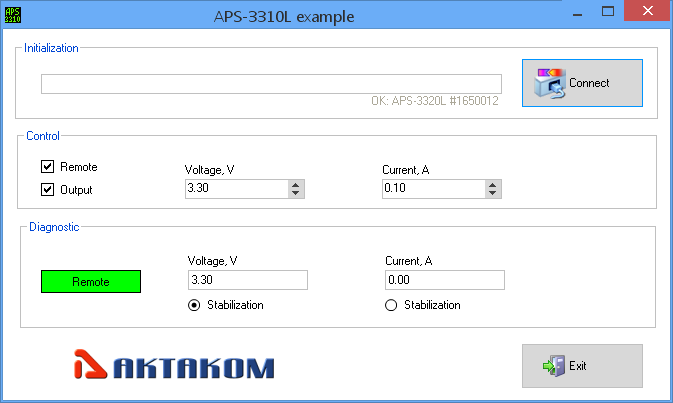

  • example of application for MS Visual Basic

    Function list:

    APS3310L_init

    Device Info

    APS3310L_GetChannelCount

    APS3310L_GetChannelMaxRange

    Configuration

    APS3310L_SetControl

    APS3310L_GetStatus

    APS3310L_SetVoltage

    APS3310L_GetVoltage

    APS3310L_SetCurrent

    APS3310L_GetCurrent

    Diagnosis

    APS3310L_TestVoltage

    APS3310L_TestCurrent

    APS3310L_TestTemperature

    Utility

    APS3310L_GetAULDeviceInfo

    APS3310L_IsOpened

    APS3310L_IsValidDevice

    APS3310L_reset

    APS3310L_SetProcessSysEventFuncPtr

    Socket Info

    APS3310LSocketListCount

    APS3310LSocketListClear

    APS3310LAddSocket

    APS3310LGetSocket

    APS3310LGetDeviceSocket

    APS3310LSetSocket

    APS3310LDelSocket

    APS3310LScanSocket

    Error Info

    APS3310LGetErrorMessage

    APS3310LSetErrorMessage

    APS3310Lerrormessage

    APS3310LGetLastError

    APS3310LClearDrvError

    APS3310L_Close

    This full version of SDK is recommended for use by qualified programmers who are familiar with technical terms used in the description of this product and can apply its functions to create their own software.

    The SDK could be downloaded from www.tmatlantic.com.

    To download the software click the Download button, then log in by entering your username and password. If you have not previously registered on the site www.tmatlantic.com click on the Register link and provide the required data.

    Then, select from the list your AKTAKOM device and enter its serial number. WARNING: Serial number must be entered exactly as it appears on the device, with all the letters, numbers and other characters. Next, you need to register your product AKTAKOM if you have not done so already, and accept the License Agreement, then you will be provided with links to download the software.

    To start the download, simply click the Download button and select the folder you want to save the downloaded file. If a downloaded file has the zip extension decompress the file before installing the software.

    Frequently Asked Questions

  • We have the SDK downloaded, but the .dll files are not in the SDK that are needed for controlling through vb.net. How do you obtain those files? On the website it says the .dll files come with the SDK package
  • What to do if I lost my software?
  • Can I get my software on a CD?

  • We have the SDK downloaded, but the .dll files are not in the SDK that are needed for controlling through vb.net. How do you obtain those files? On the website it says the .dll files come with the SDK package

    File .dll for APS-3xxx series power supplies has the name APS3310L.dll. The .dll file is initially located in the installer archive and when installing the SDK it is installed not in the SDK folder, but in the Windows system folder, usually it is C:\Windows\System32 or C:\Windows\SysWOW64.

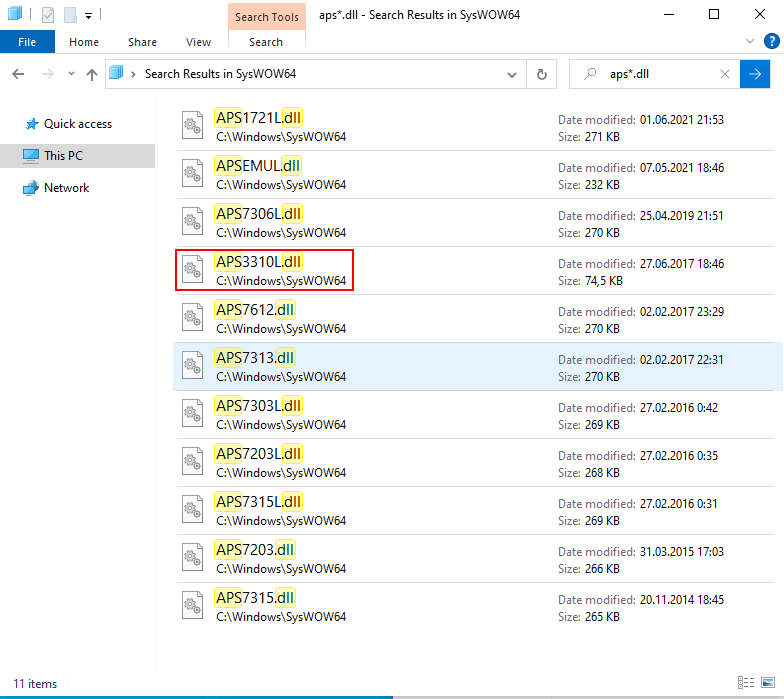

    Where to fiind APS3310L.dll file


    Up

    What to do if I lost my software?

    In the case of loss, there is a charge for the software reloading.
    Up

    Can I get my software on a CD?

    The software can be delivered on physical media (CD-ROM). You can buy this service in our on-line store. The cost of writing your software on CD is $10 + tax (if you located in Florida) + shipping. It will be mailed to you after payment is received. The $10 charge is not for the software but the labor of writing on the CD and mailing it to you.

    Please note: this service is available only for purchased and registered instruments and software.

    Recording your Software on CD


    Up
