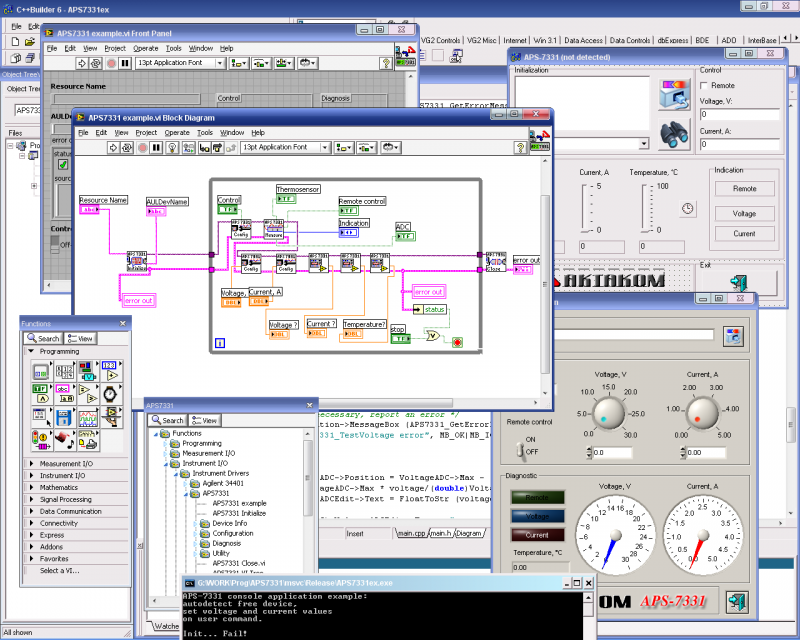

The SDK is designed for creating user applications using the supported hardware. This SDK contains the device driver for controlled power supplies from the series of AKTAKOM Power Supplies APS-7313, APS-7315 and APS-7612. The driver contains all the necessary functions to control the instruments, as well as, dynamic link library (DLL) for Windows. The driver also includes header file for the C programing language, functional and totally free branch of Lab Windows and a complete library of tools for LabVIEW.
The SDK Contains:
- dynamic-link library (DLL) Windows, contains all the functions required to control the device
- library header file in the C programing language
- Help file that describes all library functions.
Driver library functions are compatible with all DLL methods.
This full version of SDK is recommended for use by qualified programmers who are familiar with technical terms used in the description of this product and can apply its functions to create their own software.
The SDK could be downloaded from www.tmatlantic.com.
To download the software click the Download button then log in by entering your username and password. If you have not previously registered on the site www.tmatlantic.com click on the Register link and provide the required data.
Then, select from the list your AKTAKOM device and enter its serial number. WARNING: Serial number must be entered exactly as it appears on the device, with all the letters, numbers and other characters. Next, you need to register your product AKTAKOM if you have not done so already, and accept the License Agreement, then you will be provided with links to download the software.
To start the download, simply click the Download button and select the folder you want to save the downloaded file. If a downloaded file has the zip extension decompress the file before installing the software.
