AKTAKOM APS-7306W programmable DC power supply is designed to provide stabilized voltage and current with high precision and low noise. APS-7306W power supply is the updated version of world famous Aktakom APS-7305L. In 2013 at Best in Test Award competition annually held by American “Test & Measurement World” APS-7305L became the winner in 2 categories at once: «Power supply» and «Test Product of the Year»!
APS-7306W regulated DC power supply is perfect for industrial, laboratory and other engineering solutions.
APS-7306W programmable DC power supply differs from other similar devices by wide capabilities of local and remote control through AKTAKOM Power Manager Core software.
This power supply is capable of operating in several modes:
Manual control mode. Including the use of 4 memory cells to store preset voltage and current. In manual mode you can adjust output voltage and current using the knob and buttons on the power supply front panel.
Control mode with the built-in memory use. APS-7306W allows to store output voltage and current values in the built-in memory for further use.
Remote control mode to operate AKTAKOM APS-7306W DC power supply by computer via USB interface through AKTAKOM Power Manager Core Software. Moreover the USB interface has full galvanic isolation between the power supply and the computer.
Remote control mode to operate AKTAKOM APS-7306W DC power supply by computer via Wi-Fi through AKTAKOM Power Manager Core Software.
Voice Guide
The software for this power supply is multifunctional and interactive, it features the voice guide. Your power supply will literally tell you what current or voltage it is outputting! The voice guide announces all voltage current changes and power supply output status. This feature is very convenient because it allows you to work in the laboratory without paying attention to the power supply indicators.
The "Voice" button selects a Windows voice guide that will announce application events to you. Select the "No voice" option to disable the voice guide. Voice guidance works in all languages installed in the operating system on your PC.
Features
- dual LED display for voltage and current
- coarse and fine adjustments of voltage and current
- protection mode: current limiting
- output connectors: insulated safety plugs
- organic glass front panel / other panels made of steel
- memory: 3 programmable memories
- computer connectivity: pc remote control via USB or Wi-Fi
- software included for Windows W10, W11
Accuracy tables
"Absolute measurement error" service allows you to estimate the measurement accuracy considering uncertainty (error) in the absolute value. It's important if you take measurements at the range edge when the error value contributes to the value displayed on the device screen.
To get the value range it'd be enough to enter the estimate of the value under measurement into Value input field and to see the range of possible values taking all of the standardized errors into consideration.
Note: a point is used as a separator of the integer and fractional part.
Output voltage
Output current
Specifications
- LED display: 2
- Channel: 1
- Output voltage: 0…30 V
- Output current: 0…5 A
- Output voltage inaccuracy: ±(0.5% + 20 mV)
- Output current inaccuracy: ±(0.5% + 10 mA)
- Voltage ripple & noise: 2 mV RMS.
- Input voltage: 110 V / 220 V
- Dimensions: 4.5x7.5x9.5 in / 115x190x240 mm
- Weight: 12 lb / 5.6 kg

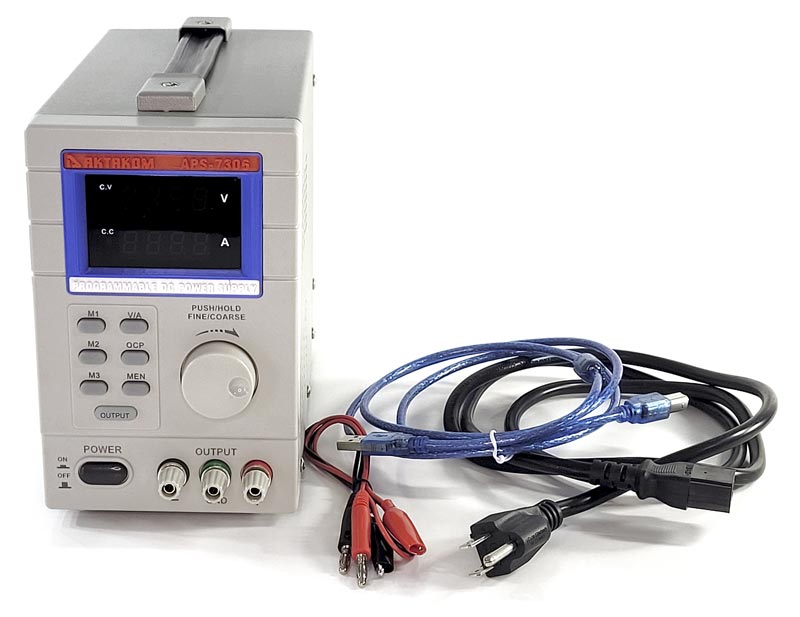

Included accessories
- Power cord
- USB cable
- User manual
Switching the Power Supply On or Off

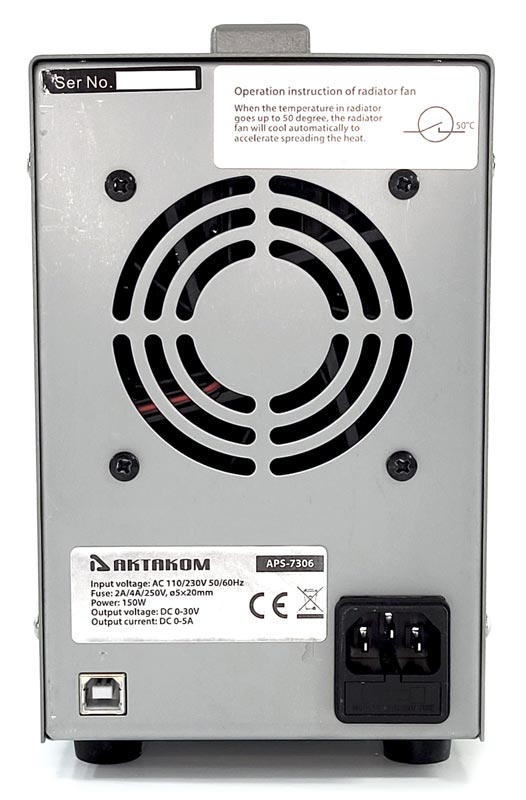

- Connect the included power cord to the back of the device (see the pic. below) and plug the other end into a suitable, earthed power socket. Always connect the device to an earthed power socket!
- Press the Power button on the front panel to switch the power supply on. At this moment, there is no output voltage or current on the output terminals.
- Press the Power button to switch the power supply off.
Connecting a Load
- Connect the load’s positive terminal to the red terminal “+” of the power supply.
- Connect the load’s negative terminal to the black terminal “-” of the power supply.
- You can connect “+” or “-“ terminal to the green earth terminal of the power supply to pin the voltage to 0V (earth potential) at that terminal.
If you leave the earth terminal unconnected, the output floats with respect to the ground.
Applying Voltage to the Load
- Press the Off/On key on the front panel to apply the voltage to the load. The “Output” and “C.V.” indicators on the display light. The power supply works in constant voltage (CV) mode; the display now shows the actual output voltage and current.
If the current exceeds the set current limit, the power supply automatically goes into constant current (CC) mode. The “C.V.” indicator goes out and the “C.C.” indicator on the display lights
- Press the Off/On key to switch the output off.
Setting Voltage and Current
You can save 3 different voltage/current settings using the memory keys M1~M3.
- Press the “V/A” key on the front panel to set the voltage. The voltage readout flashes.
For use in constant voltage mode: this is the desired constant voltage.
- Turn the round adjustment knob until you reach approximately the desired voltage. Press the adjustment knob to select a digit in the voltage readout and turn the adjustment knob to fine-tune.
- Press the “V/A” key again to set the current. The current readout flashes.
- For use in constant voltage mode: this is the desired current limit.
- For use in constant current mode: this is the desired constant current.
- If you enable overcurrent protection, the output switches off automatically if the current exceeds this value.
- Turn the round adjustment knob until you reach approximately the desired current. Press the adjustment knob to select a digit in the current readout and turn the adjustment knob to fine-tune.
- Press the memory key “MEN” again (or wait until the display to start flashing). Then press the M1-M3 button The settings are saved in the selected memory (the display stops flashing).
Recalling Settings
To recall one of the saved settings, press the corresponding memory key M1~M3, the corresponding voltage/current settings appear on the display.
Note: the output is switched off automatically when you press a memory key to recall a setup.
Using the Power Supply in Constant Current Mode
If you want to use the power supply in constant current mode: you set up the desired output current between 0A and 3A/5A. You also set up the desired voltage limit.
Using the Power Supply in Constant Voltage Mode
If you want to use the power supply in constant voltage mode, you set up the desired output voltage between 0V and 30V. You also set up the desired current limit.
If the output current exceeds the limit, the power supply automatically goes into constant current mode.
WEB Access and Network Settings
Remote control mode allows you to operate a power supply via WEB interface using your preferred Internet browser.

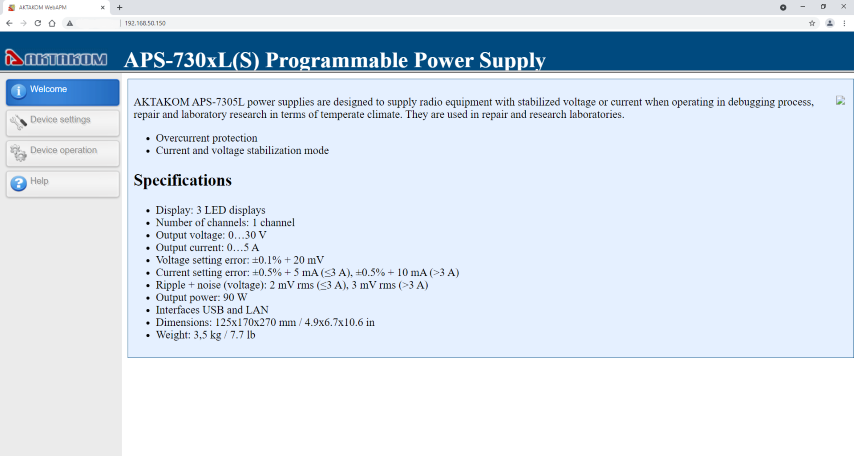

Picture 1 Device Specifications

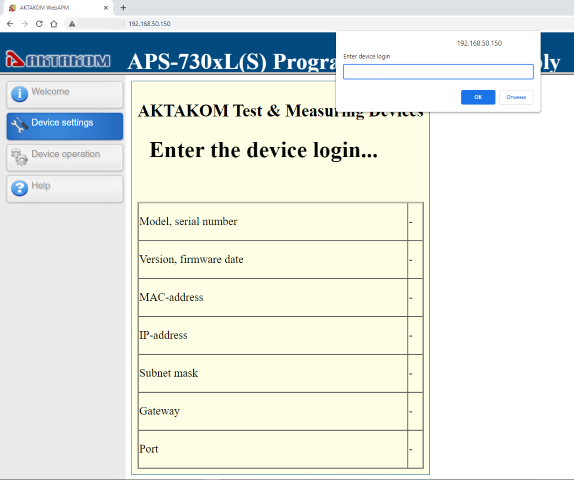

Picture 2 Device Settings

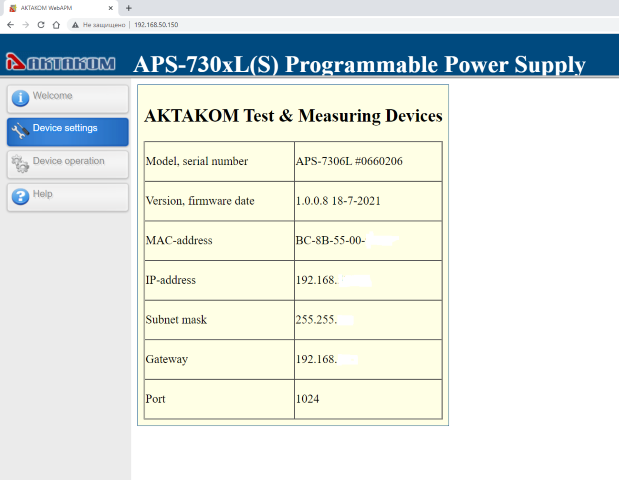

Picture 3 Connection Settings
Picture 4 Main Interface
Picture 5 Help
Frequently Asked Questions
What languages does the voice guide support?
May I use AKTAKOM power supplies to charge accumulators?
What languages does the voice guide support?
|
Voice guidance works in all languages installed in the operating system on your PC.
Up
|
May I use AKTAKOM power supplies to charge accumulators?
|
|
AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.
Up
|
Compatible Software
Aktakom Power Manager Core
The Aktakom Power Manager Core software is designed to manage AKTAKOM APS-7306W power supplies.
Learn more...
Free for registered users
Aktakom Power Manager Core Pro
The Aktakom Power Manager Core Pro software is designed to manage AKTAKOM APS-7306W power supplies.
Learn more...
