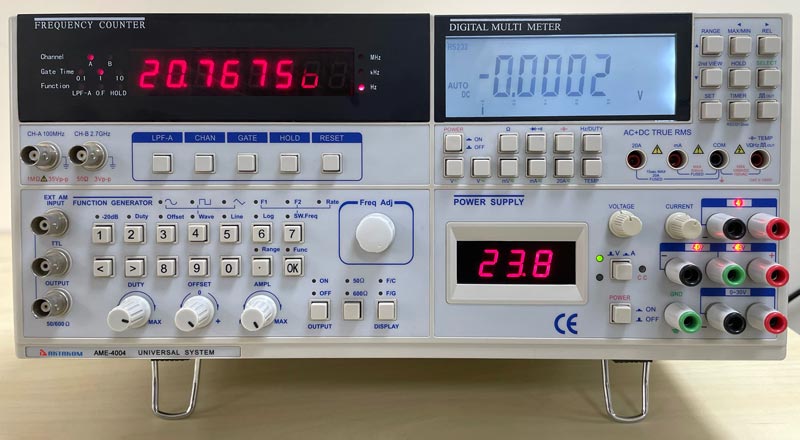

AME-4004 Universal System

AME-4004 Universal System is a 4-in-1 instrument, it includes DDS function generator with linear / logarithmic frequency sweeping, DC offset function, 4 channels regulated DC power supply (one adjustable and three fixed) with current limit, overload and short-circuit protection, frequency counter with low-pass filter and attenuator in pre-circuit, True RMS digital multimeter with 80,000 counts display, analog bar-graph, relative and max /min value measurement, RS-232C interface.

Channels	1
Output frequency	10 MHz
Waveform	Standard signal of arbitrary waveform generator: Sine, Standard signal of arbitrary waveform generator: Square, Standard signal of arbitrary waveform generator: Triangle, Pulse
Amplitude	100 mVpp...20 Vpp
True RMS	+
Special features	frequency counter
Interface	RS-232
Power supply	100...240 VAC
Dimensions	165 x 370 x 360 mm

Specifications

Function Generator

• Waveform: sine, square, triangle, pulse, TTL
• Frequency range: 1Hz-10MHz
• Output: 100mVpp-20Vpp, 50Ohm/600Ohm ±10%
• DC offset: -10V-10V
• Sine wave distortion: <1% (@1kHz)
• Square wave symmetry: <3% (@1kHz)
• Duty cycle: 15%-85%
• Frequency sweep: 1Hz-10MHz, linear/logarithmic

Power supply

• CH1: 0-30V / 0-3A (3.3A max.)
• CH2: +15V / 1A and -15V / 1A fixed
• CH3: 5V / 2A fixed

Frequency counter

• Range: 1Hz-100MHz (CHA); 100MHz-2.7GHz (CHB)
• Sensitivity: 40mVrms sine wave or 100mVpp
• Max. input voltage: 35Vpp (CHA); 3Vpp (CHB)
• Input impedance: 1 MOhm (CHA); 50Ohm (CHB)

DMM

• DCV: 80mV / 800mV / 8V / 80V / 800V, ±0.05%
• ACV: 80mV / 800mV / 8V / 80V / 800V, ±0.8% (TrueRMS)
• DCA: 80mA / 800mA / 8A / 20A, ±0.2%
• ACA: 80mA / 800mA / 8A / 20A, ±1.0% (TrueRMS)
• Resistance: 800Ω / 8kΩ / 80kΩ / 800kΩ / 8MΩ / 80MΩ, ±0.2%
• Frequency: 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz / 100MHz / 1000MHz, ±0.05%
• Capacitance: 1nF / 10nF / 100nF / 1µF / 10µF / 100µF, ±5.0%
• Diode test: 3V
• Squarewave output: 3V, 0.5Hz-5kHz, 1%-99%

Power supply: AC 100-240V, ±10%

Dimensions: 165(H) x 370(W) x 360(D) mm

Net weight: 12.5 kg.
