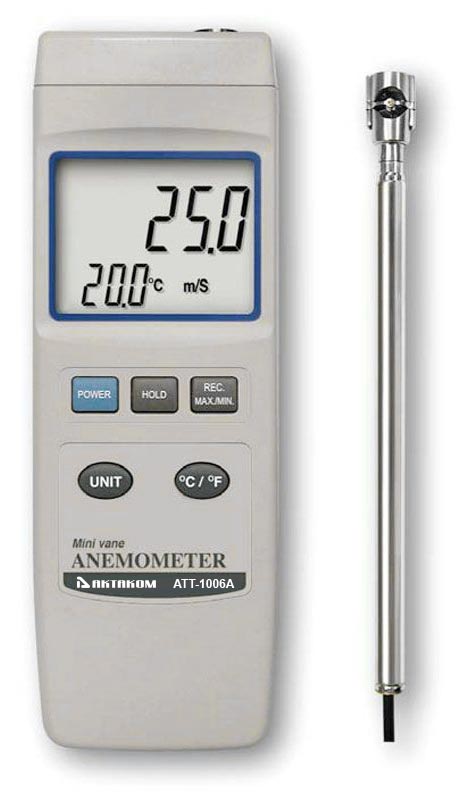

ATT-1006A Anemometer
AKTAKOM ATT-1006A anemometer is the best choice to check air conditioning and heating systems, measure air velocity, wind speed and temperature. This instrument has a separate telescopic probe, that is easy for operation in different measurement environment. Low-friction ball vane is accurate in both high and low velocities. ATT-1006A anemometer (analog of Lutron YK-80AS) provides temperature measurements with thermistor sensor, data hold function and records maximum and minimum reading with recall.
ATT-1006A Anemometer Features and Benefits
- 0.5in / 13mm diameter heavy duty mini vane with telescope probe available for air velocity measurement.
- Low-friction ball vane wheels is accurate in both high and low velocities
- Thermistor sensor for temperature measurement, fast response time
- Air velocity: m/s, ft/min, km/h, knots, mile/h
- Air temperature: °C, °F
- Large LCD with dual display
- Record max. and min. reading value
- Data hold
- RS-232 PC serial interface
- Auto power off saves battery life
| Air velocity | 0.8...12.00 m/s |
| Air velocity accuracy | ±(2%+0.2) |
| Air velocity resolution | 0.01 m/s |
| Air velocity sensor type | Low-friction ball minivane |
| Air temperature | 0...80 °C / 32...176 °F |
| Air temperature accuracy | ±0.8 °C / ±1.5 °F |
| Air temperature resolution | 0.1 °C / 0.1 °F |
| Data hold | + |
| Min/Max measurement | + |
| Interface | RS-232 |
| Display | LCD |
| Power supply | 9 V battery |
| Dimensions | Instrument: 7.9 x 2.7 x 1.2 in / 200 x 68 x 30 mm, Probe: 0.5 in / 13 mm dia, max length 23.6 in / 600 mm |
Specifications
Electrical specifications (23±5 °C)
|
Measurement
|
Range
|
Resolution
|
Accuracy
|
|
m/s
|
0.8...12.00
|
0.01
|
±(2%+0.2)
|
|
km/h
|
2.8...43.2
|
0.1
|
±(2%+0.2)
|
|
mile/h
|
1.8...26.8
|
0.1
|
±(2%+0.2)
|
|
ft/min
|
160...2358
|
1
|
±(2%+20)
|
|
knots
|
0.8...23.3
|
0.1
|
±(2%+0.2)
|
|
Temperature (°C)
|
0...80
|
0.1
|
±0.8
|
|
Temperature (°F)
|
32...176
|
0.1
|
±1.5
|
General specifications
- Sampling time: approx. 0.8 sec.
- Display: 51 mm x 32 mm LCD
- Operating temperature:
- Meter: 0...50 °C (32...122 °F)
- Vane probe: 0...80 °C (32...176 °F)
- Operating humidity: <80% RH
- Power supply: 006P DC 9V battery
- Power current: approx. DC 8.3 mA
- Dimensions:
- Instrument: 200 x 68 x 30 mm (7.9 x 2.7 x 1.2 inch)
- Probe: 13 mm diameter (vane), telescopic probe length - max. 600 mm
- Weight: 220 g / 0.48 LB
