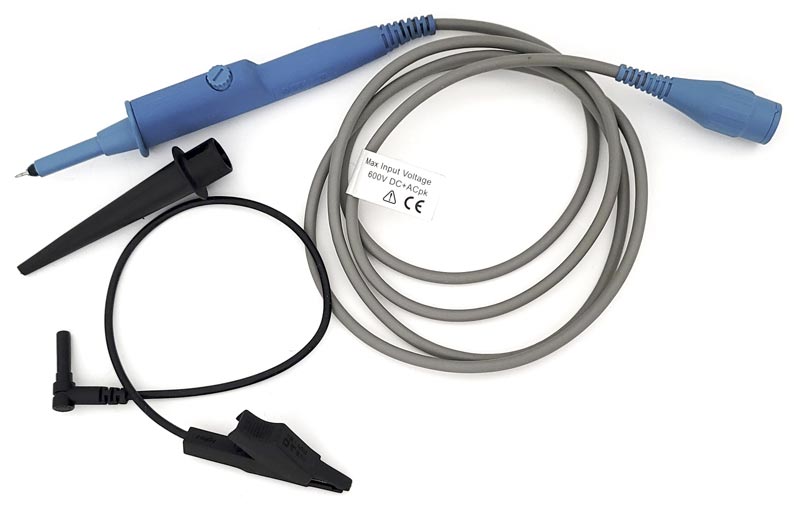

P2300B Oscilloscope Probe 300 MHz 10x

Click an image to enlarge

Retail price: $59.00

Check shipping cost

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)
See shipping page for international rates
or contact sales@tmatlantic.com

In stock, 3 left

Buy Add to cart

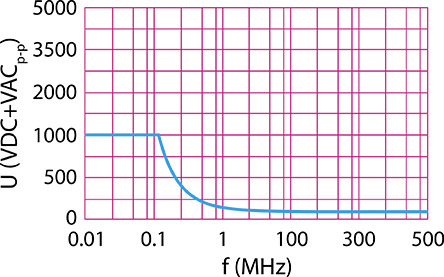

P2300B Oscilloscope Probe 300 MHz 10x - maximum working voltage derating curve

P2300B passive oscilloscope probe can be used together with any test instrument that has an input impedance of 1 MOhm and whose input capacitance is within the compensation range (see specifications).

For an accurate indication of the measuring signal, it is necessary to adjust the capacitance of the probe to the input capacitance of the oscilloscope. For this purpose the probe has an adjustment screw in the handling section. Learn more about probe compensation.

Specifications

Attenuation ratio: 10:1
Bandwidth: 0...300 MHz
Rise time: 1.15 ns
Input impedance: 10 MOhm ±1%
Input capacitance: 16 pF
Compensation range: 10 pF...30 pF
Max. input voltage: 600 V DC+ACpk
Lead length: 1.3 m
Operating temperature: -10...+50 °C
Non-operating temperature: -20...+75 °C
Humidity: ≤85% RH
Rated voltage when using touch-protected test instrument: max. 1000 V, CAT II; 600 V, CAT III (learn more about measurement categories)

Included Accessories

Reference lead with crocodile clip
Push-on hook clip
