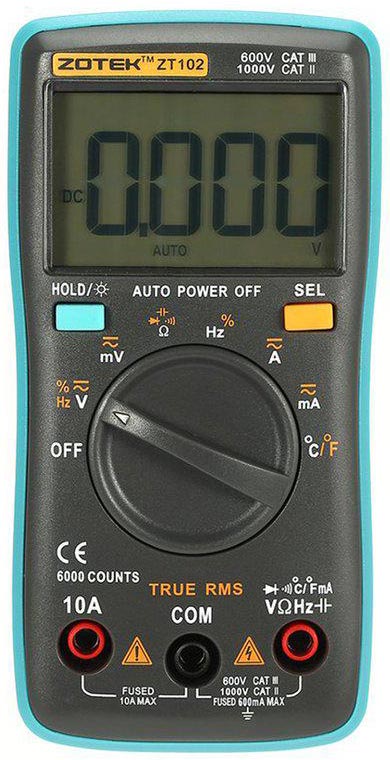

ZT102 Digital Multimeter

ZT102 handheld digital multimeter provides all the functions needed to help you obtain accurate measurements. ZT102 digital multimeter is a perfect tool for laboratories, production facilities and radio enthusiasts, combining wide range, safety and ease of use. True RMS feature ensures the most accurate measurements on non-sinusoidal and distorted signals. ZT102 digital multimeter has auto power off feature: 15 minutes after the rotary switch is opened, the meter automatically enters the sleep state to reduce energy consumption.

Features

• True RMS
• 6000 counts, auto range
• Large LCD backlight display
• AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode, Continuity Testing and Temperature
• Data hold
• 10A current with fuse protection

DC Voltage (DCV)	1000 V
AC Voltage (ACV)	750 V
DC Current (DCA)	10 A
AC Current (ACA)	10 A
Frequency	9.999 MHz
Duty Cycle	1%...99%
Resistance	60 MΩ
Capacitance	9.999 mF
Temperature	-20 °C...1000 °C / -4 °F...1382 °F
Temperature sensor type	Type K thermocouple
Diode test	+
Continuity check	+
True RMS	+
Autorange	+
Data hold	+
Display	LCD, 6000 counts
Power supply	1.5 V x 2 batteries
Dimensions	125 x 65 x 24 mm / 4.9 x 2.6 x 0.9 in

Specifications

• True RMS
• Main measurements: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode, Continuity Testing and Temperature
• DC volts: 60mV / 600mV ±(0.5%+3), 6V / 60V / 600V / 1000V ±(0.5%+3)
• AC volts: 6V / 60V / 600V / 750V ±(1.0%+3), 60mV / 600mV ±(1.0%+3）
• DC current: 6A / 10A ±(1.2%+3), 60mA / 600mA ±(1.2%+3)
• AC current: 6A / 10A ±(1.5%+3), 60mA / 600mA ±(1.5%+3)
• Resistance: 600Ω / 6KΩ / 60KΩ / 600KΩ / 6MΩ ±(0.5%+3), 60MΩ ±(1.5%+3)
• Capacitance: 9.999nF ±(5.0%+20), 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF ±(2.0%+5), 9.999mF ±(5.0%+5)
• Frequency: 99.99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz / 9.999MHz ±(0.1%+2)
• Duty Cycle: 1%...99% ±(0.1%+2)
• Temperature: (-20...1000)°C ±(2.5%+5), (-4...1832)°F ±(2.5%+5)
• Sample rate: 3 times per second
• Display: 6000 Counts
• Auto range
• Data hold
• Low voltage indication
• Auto power off
• Over range indication
• Backlight
• Diode test
• Continuity test
• Working environment: 0...40°C, relative humidity <75%
• Supply power: 1.5V AAA battery x2 (not included)
• Product size: 125 x 65 x 24 mm / 4.9 x 2.6 x 0.9 in

• Product weight: 127g
• Package size: 16 x 9.7 x 4.5 cm / 6.3 x 3.8 x 1.8 in
• Package weight: 251g / 0.55lb

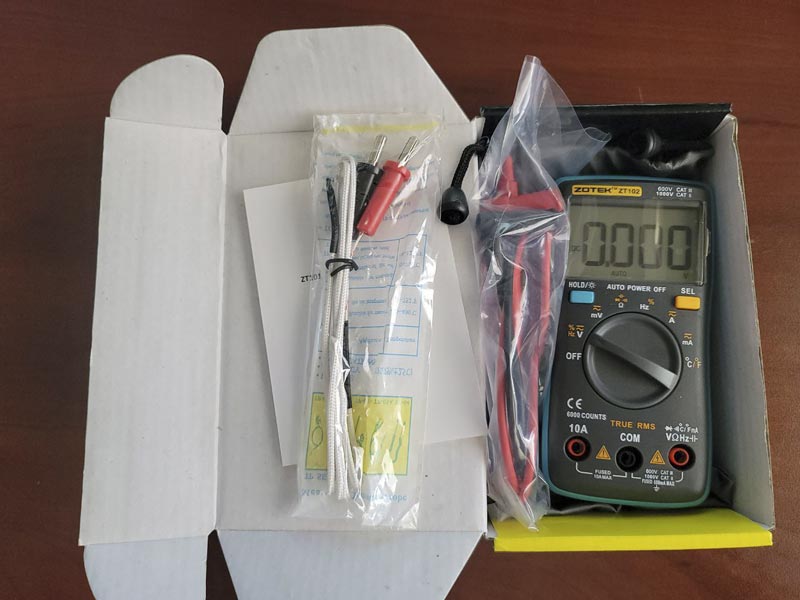

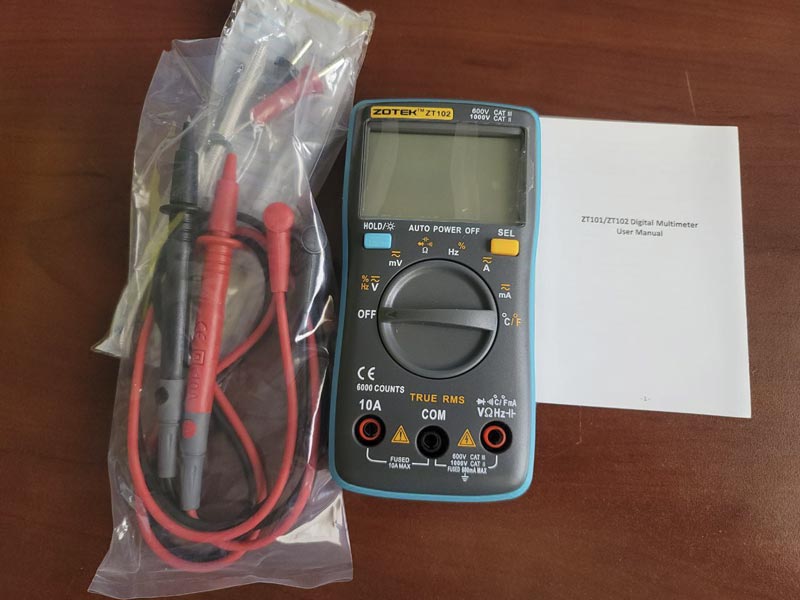

Included accessories

• Test leads (x2)
• Temperature probe
• User's manual (English)
• Cloth bag

El multímetro digital portátil ZT102 proporciona todas las funciones necesarias para ayudarlo a obtener mediciones precisas. El multímetro digital ZT102 es una herramienta perfecta para laboratorios, instalaciones de producción y entusiastas de la radio, ya que combina un amplio rango, seguridad y facilidad de uso. La función True RMS garantiza las mediciones más precisas en señales no sinusoidales y distorsionadas. El multímetro digital ZT102 tiene una función de apagado automático: 15 minutos después de que se abre el interruptor giratorio, el medidor ingresa automáticamente al estado de suspensión para reducir el consumo de energía.


Características



• Valor eficaz verdadero
• 6000 conteos, rango automático
• Gran pantalla LCD retroiluminada
• Voltaje CA/CC, corriente CA/CC, resistencia, capacitancia, frecuencia, ciclo de trabajo, diodo, prueba de continuidad y temperatura
• Retención de datos
• 10A de corriente con protección de fusible
