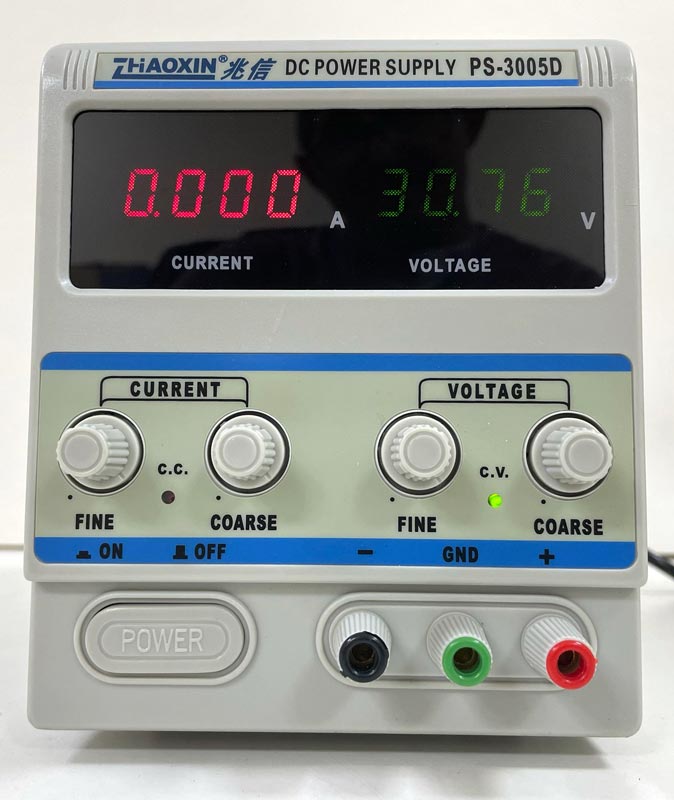

DPS-3005D 150W Variable LED Display Digital Adjustable Switching DC Power Supply

Zhaoxin DPS-3005D 150W Variable LED Display Digital Adjustable Switching DC Power Supply
Click an image to enlarge
Brand: Zhaoxin

Retail price: $99.00
Discount price: $89.00
You save: $10.00
Discount expires 12/31/2024

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock, 1 left

Buy Add to cart

DPS-3005D switching DC power supply provides stabilized DC voltage and current with low noise.

Features

  • Response and high accuracy when compared with linear power supply.
  • Output voltage and output current between 0 to rated value is continuously adjustable.
  • Constant voltage and constant current can automatic conversion.
  • Overload and reverse polarity protection keep power supply and its loads safe from unexpected conditions.
  • LED digital display output voltage and output current.
  • Cooling fan is connected with temperature sensor. Its can reduce the fan speed automatically when the internal temperature or load decreases to prevent the additional noise.
  • Single Output.
  • Has A / mA converter to display the current function and four voltage and current display.
  • Dual LED show voltage (red), current (blue)

Channels1
Output voltage (V)30
Output voltage accuracy±(0.01% + 2 mV)
Output voltage display resolution1 mV
Output current (A)5
Output current display resolution1 mA
Output power150 W
Power supply220 V

Accuracy tables

Output voltage

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
30 V 1 mV ±(0.01%+2 digits) ±0.0049999 V V

Specifications

  • Output Voltage: 0~30V
  • Output Current: 0~5A
  • Ripple and Noise: ≤1mVrms (RMS)
  • Load stability: ≤0.01% + 2mV
  • Regulation accuracy: ≤0.01% + 2mV
  • Output terminals: three output terminals.
  • Protection: over-current protection.
  • Current/Voltage display Accuracy: 4 LED Display
  • Display Resolutions: 0.001V, 0.001A
  • Operating Temperature: -10°C -40°C
  • Input voltage: 220V ± 10% 50Hz ~ 60Hz
  • AC Input Fuse: 1.5A
  • Weight: 4.8 kg
  • Dimensions: 275 x 126 x 160 mm
