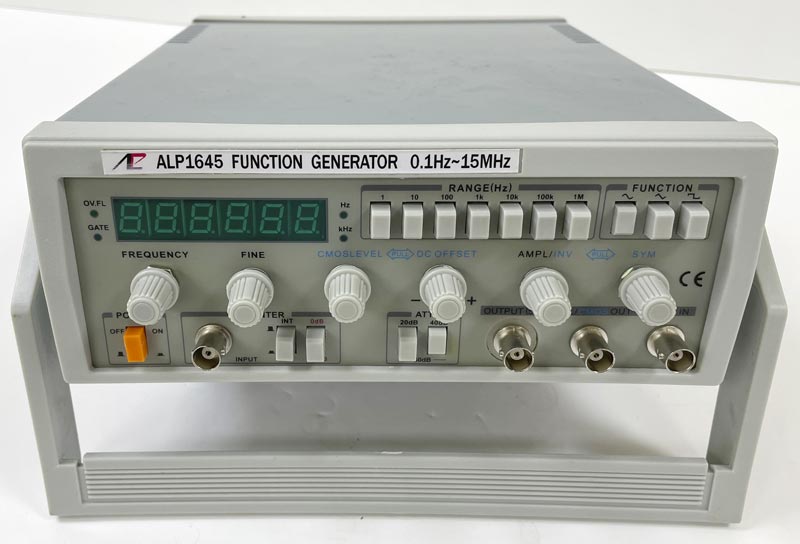

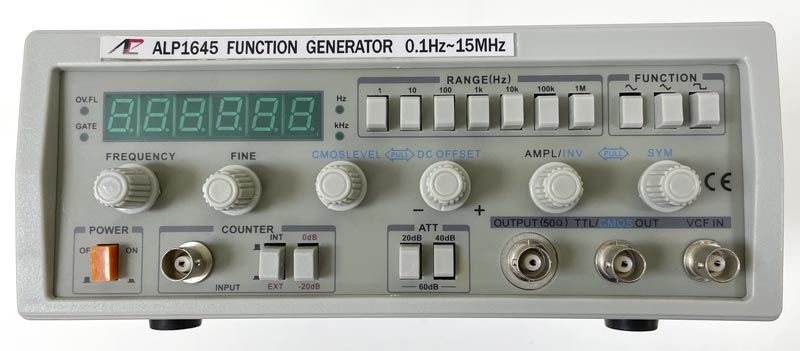

ALP1645 Function Generator 0.1Hz-15MHz
ALP1645 Function Generator 0.1Hz-15MHz
Features
- Frequency range: 0.1-15MHz
- Output waveform: Sine, Triangle, Square, ±Ramp, ±Pulse
- TTL/CMOS and OUTPUT synchronous output
- Less than 1% distortion at 10Hz-100 KHz
- Less than 0.5dB frequency response at 0.1Hz-100 KHz
- 1Hz-30MHz frequency counter
Specifications
|
Output waveform
|
Sine, Triangle, Square, Positive and Negative Pulse, saw tooth wave
|
|
Output Impedance
|
50Ω ±10%
|
|
Amplitude
|
Not less than 20Vp-p (open circuit)
|
|
DC Voltage
|
0-±10V continuously adjustable
|
|
Symmetry Range
|
90:10-10:90
|
|
Rising Edge of Square
|
less than 50ns
|
Sine Characteristic
|
Distortion
|
Less than 1% at 10Hz-10 KHz
|
|
Frequency Response
|
0.1Hz-100KHz: Less than ±0.5dB
100KHz-15MHz: Less than ±1dB
|
TTL/COMS Output
|
Level
|
TTL low level less than 0.4V in pulse wave, high level less than 3.5V,CMOS low less tan 0.5V in pulse wave, high level 5V‐‐14V ontinuously variable.
|
|
Rising Time
|
less than 100ns
|
VCF Input
|
Output Voltage
|
-5V-0V ±10
|
|
Max. volt-cotrolled
|
1000:1
|
|
Input Signal
|
DC-1KHz
|
Frequency counter
|
Measuring Range
|
1Hz-10MHz ≥10Vp-p
|
|
Input Impedance
|
Not less than 1MΩ / 20F
|
|
Sensitivity
|
100mVrms
|
|
Max. Input
|
150V (AC+DC)
|
|
Input Attenuation
|
20dB
|
|
Accuracy
|
Less than 0.0003% ±1digit
|
|

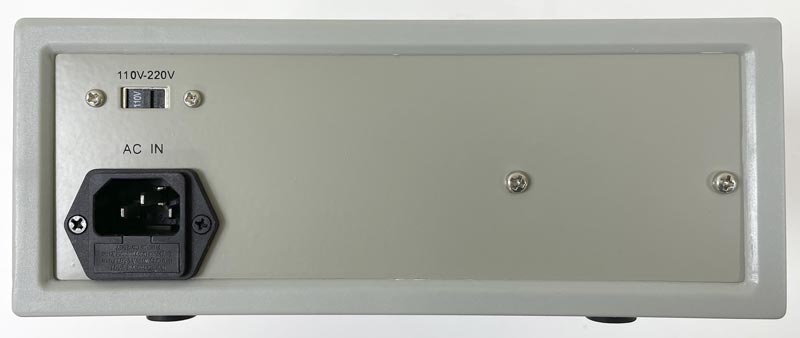

Line power
|
220V/110V ±10%, 50Hz / 60Hz
|
|
Dimension
|
270×225×90mm
|
|
Weight
|
2.5 kg
|
Características
- Rango de frecuencia: 0,1-15MHz
- Forma de onda de salida: Sinusoidal, Triángulo, Cuadrada, ±Rampa, ±Pulso
- Salida síncrona TTL/CMOS y SALIDA
- Menos del 1% de distorsión a 10Hz-100KHz
- Respuesta de frecuencia inferior a 0,5 dB a 0,1 Hz-100 KHz
- Contador de frecuencia de 1Hz-30MHz
