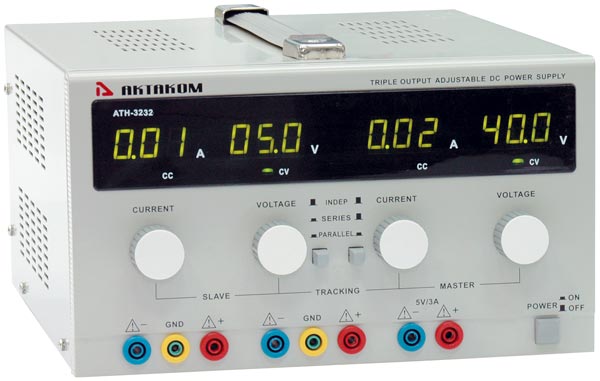

ATH-3232 DC Power Supply 30V / 5A 3 Channels

Click an image to enlarge

Brand:
Warranty: 1 year
Manuals:

User's Manual (392.52 Kb)

Perfect choice for repair and debugging processes and an ideal power supply for research laboratories. 30V, 5A, 3 channels

Retail price: $149.00

Check shipping cost

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)
See shipping page for international rates
or contact sales@tmatlantic.com

In stock, 1 left

Buy Add to cart

AKTAKOM ATH-3232 Power supply provides smoothly regulated stabilized voltage and stabilized current. This model is perfect choice for repair and debugging processes and an ideal power supply for research laboratories.

Features:

4 digital LED displays
Indicators of CC and CV stabilization
Separate indication of current and voltage
Short circuit protection
Current / voltage stabilization mode
Tracking mode for adjustable channels
3 channels

Channels	3
Output voltage (V)	30
Output voltage accuracy	±(0.5% + 2 digits)
Output voltage display resolution	0.1 V
Output current (A)	5
Output current accuracy	±(1% + 2 digits)
Output current display resolution	0.01 A
Ripple and Noise	2 mV
Load stability	±(0.02% + 2 mV)
Series working method	0...60 V / 0...5 A
Parallel working method	0...30 V / 0...10 A
Display	4 digital LED displays
Power supply	110 V / 220 V
Dimensions	10.2 x 5.9 x 13.8 in / 260 x 150 x 350 mm

Specifications:

Input voltage:
- 110VAC~127VAC±10%/60Hz
- 220VAC~240VAC±10%/50Hz (Switchable)
3 channels
Output voltage of adjustable channels: 0…30V x 2 (independent channels)
Output current of adjustable channels: 0…5A x 2 (independent channels)
Fixed third channel: 5V / 3A
Line regulation:
- CV = 1 x 10^-4 + 3mV
- CC = 2 x 10^-3+ 3mA
Load regulation:
- CV = 1 x 10^-4+ 2 mV (I≤3A)
- CV = 1x10^-4+ 5 mV (I>3A)
- CC = 2 x 10^-3+ 3 mA (I≤3A)
- CC = 2 x 10^-3+ 5 mA (I>3A)
Ripple and noise:
- CV = 0.5 mV rms (I≤3A)
- CV = 1.0 mV rms (I>3A)
- CC < 3mA rms
Fixed output: 10 mVrms
Protection: current-limit
Display accuracy
- Volt indication: ±(0.2%Rdg+2 digits), ±2.5% Full Scale
- Ampere indication: ±(1.0%Rdg+2 digits), ±2.5% Full Scale
Dimensions: 10.3 x 6.3 x 13.4 in / 260 x 160 x 340 mm
Weight: 19.3 lb / 8.75 kg

User Manual

Power Cord

Frequently Asked Questions

May I use AKTAKOM power supplies to charge accumulators?

May I use AKTAKOM power supplies to charge accumulators?
AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device. Up

La fuente de alimentación AKTAKOM ATH-3232 proporciona una tensión estabilizada y una corriente estabilizada reguladas sin problemas. Este modelo es la opción perfecta para los procesos de reparación y depuración y una fuente de alimentación ideal para laboratorios de investigación.

caracteristicas:

• 4 pantallas digitales LED
• Indicadores de estabilización CC y CV.
• Indicación separada de corriente y tensión
• Protección contra cortocircuitos
• Modo de estabilización de corriente / voltaje
• Modo de seguimiento para canales ajustables.
• 3 canales
