USB-RS232 AKTAKOM ACE-1026 interface converter is designed for the connection of devices with RS-232 interface to the PC via USB interface. AKTAKOM ACE -1026 interface converter supports AKTAKOM software operation with RS-232 interface devices (with standard signal levels).
Depending on a destination shipping cost may vary. Free shipping for orders over $450 on items weighting under 20 lbs (certain restrictions apply!) See shipping page for international rates or contact sales@tmatlantic.com
In stock, 1 left
Description
Specifications
Accessories
Application
FAQ
Software
Descripción

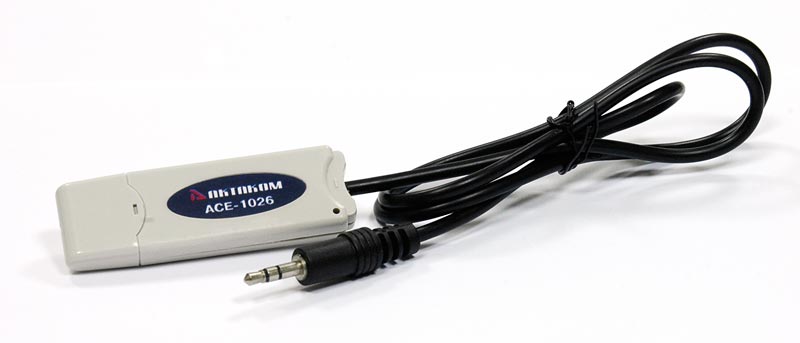

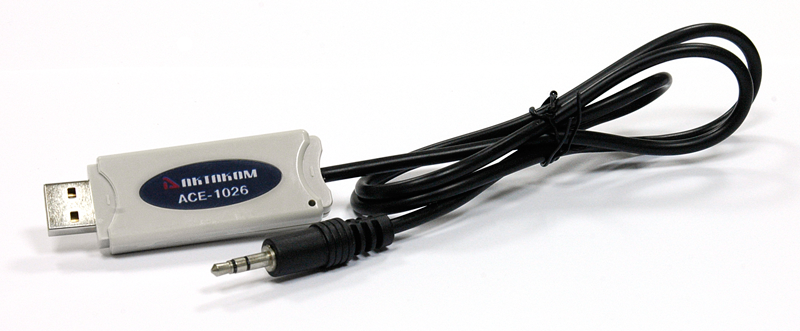

USB-RS232 AKTAKOM ACE-1026 interface converter is designed for the connection of devices with RS-232 interface to the PC via USB interface. AKTAKOM ACE -1026 interface converter supports AKTAKOM software operation with RS-232 interface devices (with standard signal levels).
AKTAKOM ACE-1026 USB-RS232 interface converter is designed for the connection of devices with RS-232 interface to the PC via USB interface. AKTAKOM ACE-1026 interface converter supports AKTAKOM software operation with RS-232 interface devices (with standard signal levels).
The interface converter supports USB 1.1 interface.
Compatible operational systems: Windows 7 x32, Windows 7 x64, Windows 8 x32, Windows 8 x64, Windows XP x32, Windows XP x64, Windows Vista.
My Android device doesn’t work with AKTAKOM ACE-1025 (ACE-1026) and can’t get data from the device connected to it. What is the reason?
To make your Android-based device (tablet PC, smartphone) operate with connected USB-devices it should meet some requirement that you may find in the description of Aktakom Data Logger Monitor (ADLM-A). Here are some of the most important features to pay attention to:
Android settings should allow applications to use API USB-host functions. Some of Android-based devices do not provide such permit on default (as a rule these are specialized devices like television-game device or set-top box etc.).
To check this functions (whether they are allowed or not) on your Android device you may use for example free utility «USB Host Diagnostics» available on Google Play. This utility can in some cases install necessary permit in the system.
How can I check Android USB-host functions using «USB Host Diagnostics»?
Install USB Host Diagnostics application on your Android device and run it.
Start diagnostics by clicking the key of the same name.
Follow the displayed instructions of the application.
After the diagnostics check the condition of Android API. «claims support = no, device detected = no» means your device IS NOT ready for operation with USB-devices.
In this case the application should offer to correct the error after the diagnostics and to restart Android.
Agree to the application by clicking «Ok» after that restart your device pressing the power button of the device.
Run the utility again and make sure the condition of Android API has changed for «claims support = yes, device detected = yes».
Now your device is ready to work with USB-devices.
If due to some reasons you do not have a chance to use this utility or would like to find more information by yourself you may search it online with the key phrases «android.hardware.usb.host.xml».
AKTAKOM ATE Easy Monitor software provides the numerical indication of 4 channel measurements as well as the data recording into file in CSV format. For the device connection the use of ACE-1025/ACE-1026 USB-RS232 interface converters is required.
ADLM-w software is designed for data reading from devices of AKTAKOM ATT, ATE series, for measurement data acquisition, its processing, displaying and storage in a PC with Windows XP x32, Windows 7 x64, Windows 7x32, Windows 8 x64, Windows Vista OS.
AUNLibUSB device driver for Windows supports AKTAKOM USB Lab instruments (PC-based oscilloscopes and other). AUNLibUSB driver is a low-level program which does not communicate with user directly neither has user interface. After its installation in the operating system the driver starts working as a part of this operating system and supplies applications with the access to the resource of AKTAKOM supported devices and appropriate programs.
ADLM-A software is designed for data reading from devices of AKTAKOM ATT, ATE series, for measurement data acquisition, its processing, displaying and storage in a tablet PC with Android OS of 4.0 and more advanced versions.
El convertidor de interfaz USB-RS232 AKTAKOM ACE-1026 está diseñado para la conexión de dispositivos con interfaz RS-232 a la PC a través de una interfaz USB. El convertidor de interfaz AKTAKOM ACE -1026 admite el funcionamiento del software AKTAKOM con dispositivos de interfaz RS-232 (con niveles de señal estándar).
