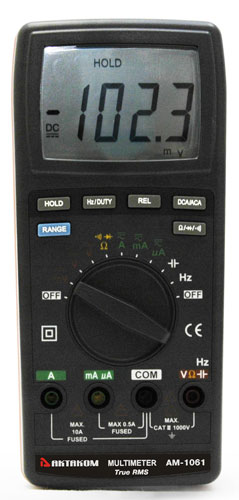

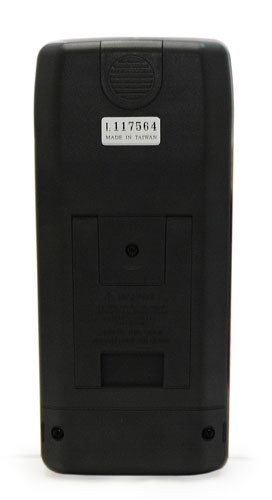

AKTAKOM AM-1061 handheld digital multimeter is designed to offer all the features needed to help you obtain accurate measurements and quickly detect problems in electronics troubleshooting.
AM-1061 handheld digital multimeter (analog of Lutron DM-9961) provides multi function measurement: DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Temperature, Diode, Continuity beeper. AKTAKOM AM-1061 digital multimeter combines wide range, high accuracy and safety.
Large LCD with digit height 1 inch makes this multimeter especially useful in education.
AM-1061 Digital Multimeter Features and Benefits
- Heavy duty CATIII-1000V category.
- True-RMS feature ensures the most accurate measurements on non-sinusoidal and distorted signals.
- 4000 counts, auto/manual range
- Large LCD, digit height 1in/23mm.
- ACV, ACA, DCV, DCA, ohms, continuity buzzer
- Hz/Duty cycle, Capacitance, diode
- Data hold, Relative, range hold
- High input impedance for mV range
- 10A current with fuse protection
| DC Voltage (DCV) | 1000 V |
| DCV Accuracy | ±(0.5%+2) |
| DCV Resolution | 0.1 mV |
| AC Voltage (ACV) | 1000 V |
| ACV Accuracy | ±(1.0%+2) |
| ACV Resolution | 0.1 mV |
| DC Current (DCA) | 10 A |
| DCA Accuracy | ±(0.5%+2) |
| DCA Resolution | 0.1 μA |
| AC Current (ACA) | 10 A |
| ACA Accuracy | ±(0.5%+2) |
| ACA Resolution | 0.1 μA |
| Frequency | 0.001 Hz...4 MHz |
| Duty Cycle | 0.1%...99.9% |
| Resistance | 0.1 Ω...40 MΩ |
| Capacitance | 10 pF...100 µF |
| Diode test | + |
| Continuity check | + |
| True RMS | + |
| Autorange | + |
| Data hold | + |
| Relative measurement | + |
| Display | LCD, 4000 counts |
| Power supply | 9 V battery |
| Dimensions | 7.6 x 3.5 x 1.6 in / 194 x 89 x 40 mm |
Accuracy tables
"Absolute measurement error" service allows you to estimate the measurement accuracy considering uncertainty (error) in the absolute value. It's important if you take measurements at the range edge when the error value contributes to the value displayed on the device screen. To get the value range it'd be enough to enter the estimate of the value under measurement into Value input field and to see the range of possible values taking all of the standardized errors into consideration. Note: a point is used as a separator of the integer and fractional part. DC Voltage
AC Voltage
DC Current
AC Current
Frequency
Resistance
Capacitance
Specifications
|
Function
|
Range
|
Resolution
|
Accuracy
|
DC Voltage
|
400mV
|
0.1mV
|
±(0.5%reading+2digits)
|
|
4V
|
0.001V
|
|
40V
|
0.01V
|
|
400V
|
0.1V
|
|
1000V
|
1V
|
|
AC Voltage (50/60Hz, True RMS)
|
4V
|
0.001V
|
±(1.0%reading+2digits)
|
|
40V
|
0.01V
|
|
400V
|
0.1V
|
|
1000V
|
1V
|
DC Current
|
400μA
|
0.1μA
|
±(1.0%reading+2digits)
|
|
4000μA
|
1μA
|
|
40mA
|
0.01mA
|
|
400mA
|
0.1mA
|
|
10A
|
0.01A
|
|
AC Current (50/60Hz, TrueRMS)
|
400μA
|
0.1μA
|
±(0.5%reading+2digits)
|
|
4000μA
|
1μA
|
|
40mA
|
0.01mA
|
|
400mA
|
0.1mA
|
|
10A
|
0.01A
|
±(1.5%reading+2digits)
|
|
Resistance
|
400Ω
|
0.1Ω
|
±(0.5%reading+2digits)
|
|
4kΩ
|
1Ω
|
|
40kΩ
|
10Ω
|
|
400kΩ
|
100Ω
|
|
4MΩ
|
1kΩ
|
|
40MΩ
|
10kΩ
|
±(2.0%reading+5digits)
|
|
Continuity buzzer: <20Ω ; Max Voltage 500V (DC) / 250V (AC rms)
|
|
Capacitance
|
40nF
|
0.01nF
|
±(3.0%reading+20digits), C<2nF
±(3.0%reading+1digits), C>2nF
|
400nF
|
0.1nF
|
|
4μF
|
0.001μF
|
40μF
|
0.01μF
|
|
100μF
|
0.1μF
|
Frequency (response 1.5V...5V)
|
4Hz
|
0.001Hz
|
±(0.5%reading+2digits)
|
|
40Hz
|
0.01Hz
|
|
400Hz
|
0.1Hz
|
4kHz
|
0.001kHz
|
|
40kHz
|
0.01kHz
|
|
400kHz
|
0.1kHz
|
|
4MHz
|
1kHz
|
Duty Cycle (10kHz max; 2...5V)
|
1...99%
|
0.1%
|
±(1.0%reading)
|
General specifications
- Display: Large LCD (4000 counts), digits 23mm high.
-
Range selection: Auto range with manual range selecting
-
Data hold: To freeze the display reading on the LCD display
-
Memory recall: Records Maximum & Minimum readings with recall
-
Relative measurement: To offset the measurement value
-
Polarity: Automatic Switching, "-" indicates negative polarity
-
Zero adjustment: Automatic
-
Sampling time: Approx. 0.5 to 1 second
-
Input impedance: 10 MOhm.
-
Operating temperature: 0°C to 50°C (32°F to 122°F)
-
Operating humidity: Max. 80%RH.
-
Power supply: 9V battery x 1
-
Power consumption: Approx. DC 1.7mA
-
Dimensions: 7.3x3.5x1.6in / 185x88x40mm
-
Weight: 0.77lb / 350g
Included accessories

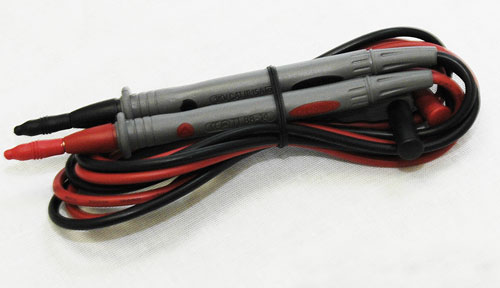

- Red and Black Test Leads (CAT III 1KV Test Leads)
Optional accessories
- Full line adapters: ACA/DCA current adapter, adapter, Tachometer adapter, Humidity adapter, Pressure adapter, Light adapter, EMF adapter, Sound level adapter, High voltage probe
- Soft carrying case
DMM basic measurement functions
As an example: oscilloscope diagnostic board AKTAKOM AEE-1017-V1 testing modes are given.
AC/DC Voltage (parallel connection to the circuit) & Current (serial! connection to the break in circuit)
e.g.: sine output (3V/5kHz)
|
AC Voltage Line Frequency ("Hz" button)
e.g.: "FM" output (5kHz)
|
Resistance measurement
e.g.: 4.5 kOhm resistor
|
Capacitance
e.g.: SMD capacitor
|
Frequency (logic)
e.g.: Counter impulse frequency
|
Continuity (sound buzzer)
e.g.: between different "ground" points of the circuit
|
Temperature (K type probe)
e.g.: micro-chip surface temperature
|
Relative measurements (offset)
e.g.: leads resistance compensation
|
Diode test
e.g.: diode forward and backward Voltage drop

|
Frequently Asked Questions
Does AKTAKOM AMM-1061 multimeter have auto power off function?
How can I deactivate Auto Power Off function of AKTAKOM AMM-1061 multimeter?
How DMM is designed (disassembled view)
How to replace or install the batteries in AM-1060?
Does AKTAKOM AMM-1061 multimeter have auto power off function?
|
|
Yes, it does. There is Auto Power Off function in AMM-1061: the device power automatically goes off if you do not use the device within 30 minutes. If you’d like to switch the device on after it was automatically powered off press any button or use the rotary switch.
Up
|
How can I deactivate Auto Power Off function of AKTAKOM AMM-1061 multimeter?
|
|
Auto Power Off function can’t be disabled in AMM-1061 multimeter.
Up
|
How DMM is designed (disassembled view)
|
|

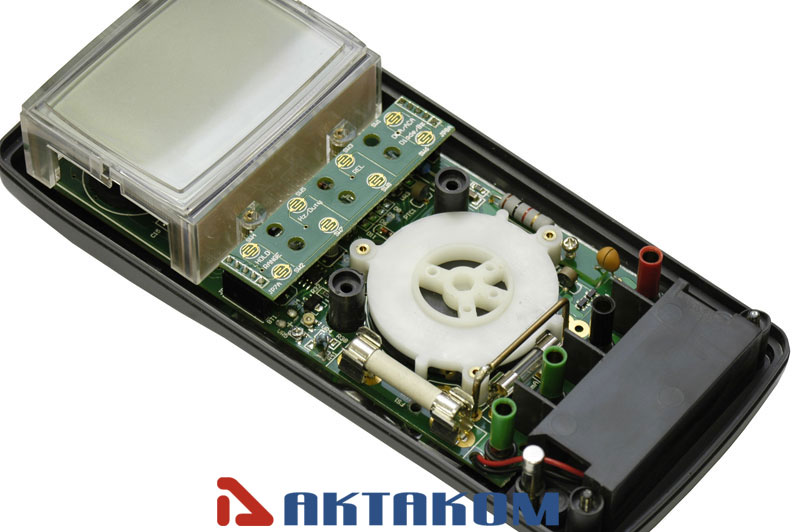

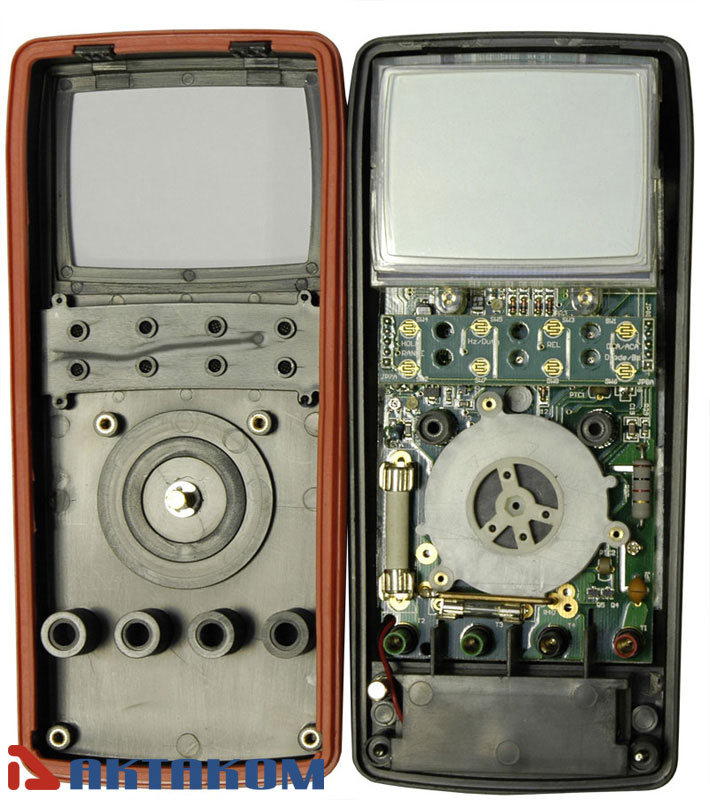

Front panel covers LCD, button board, rotary function switch gear and main plated circuit board:
*Rubber strip between the back and front chassis covers protects from water and dust.

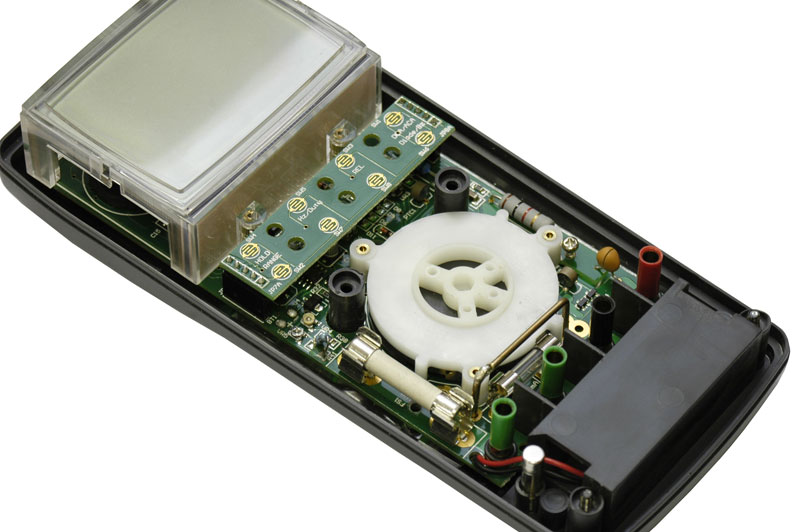

Protective fuses are mounted near the inputs and sound buzzer is placed behind the LCD.
*There is also an extra fuse fixed at the buttom (for several models)
Up
|
How to replace or install the batteries in AM-1060?
|
|
When the batteries become exhausted or drop below the operating voltage, “BAT” indicator will appear in the LCD display. In this case the battery should be replaced, however in-spec. measurements may still be made for several hours after "Low battery indicator" appears before the instrument become inaccurate.
WARNING! To avoid electric shock, disconnect the test leads from any source of voltage before removing the battery cover.
"DC 1.5V" type AAA (e.g. AM-1060)
1. Open the battery cover by loosing the screws with the cross-point screwdriver

2. Carefully pull out the buttery carrier and take off the old batteries

3. Plug the new batteries of the proper type in the holder and put it back

4.Close the battery cover and reinstate the cover

After completion make sure you don’t have any spare parts
If you do find spare parts, you must start all over
Up
|
