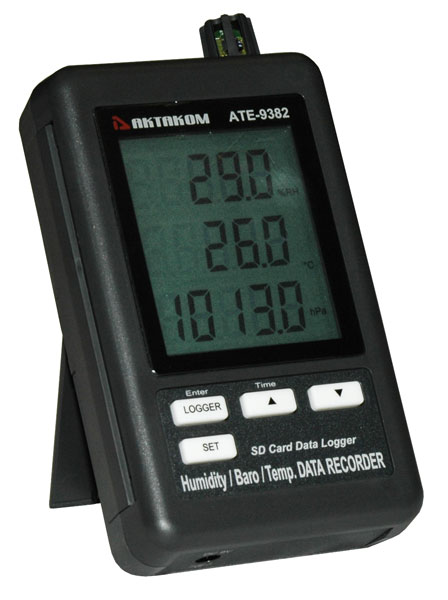

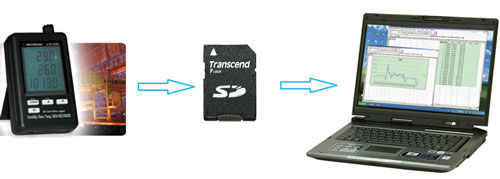

AKTAKOM ATE-9382 humidity / baro / temperature monitor features real time datalogger which saves the measuring data along the time information (year, month, date, hour, minute, second) into the SD memory card. Recorded data can be downloaded to the Excel without any extra software, users can make the further data or graphic analysis by themselves. ATE-9382 humidity / baro / temperature monitor (analog of MHB-382SD) offers high functionality and mobility.
Features
Shows Humidity, Temperature and Barometer value in the same LCD
%RH resolution for the humidity reading, 0.1 degree resolution for the Temp. reading
The precision capacitance type humidity sensor is used, professional and high accuracy for humidity measurement
Professional barometer: hPa, mmHg, inHg
SD card capacity: 1 GB to 16 GB
Large LCD display, easy readout
Microcomputer circuit, high reliability
The circuit design are deigned to consider low power consumption and long battery life when use battery power
Circuit: Custom one-chip of microprocessor LSI circuit
Display: LCD size: 2.4in x 2in / 60mm x 50mm
Measurement: Humidity, Temperature and Barometer
Memory Card: SD memory card, 1 GB to 16 GB
Datalogger / Sampling Time:
5/10/30/60/120/300/600 seconds or Auto.
Default sampling time is 60 seconds.
The " Auto " sampling means when the measuring value is changed ( >± 1 %RH or > ± 1 °C or > ± 1 hPa ) will save the data one time only
Data error no.: ≦ 0.1 % no. of total saved data typically
Advanced settings:
SD memory card Format
Set clock time (Year/Month/Date, Hour/Minute/Second)
Set sampling time
Set beeper sound ON/OFF
Decimal point of SD card setting
Set temperature unit to °C or °F
Set RS232 out ON/OFF.
Set the unit of Barometer
Update Time of Display: Approx. 1 second if measuring data is changed
Data Output:
RS-232 serial interface capable of PC connection via USB with Aktakom ACE-1025 interface converter and wide data processing capabilities with ADLM-W software or ASDM and ASDL applications Windows and Android based respectively.
Operating temperature: 0 to 50 °C
Operating humidity: Less than 90% R.H
Power supply:
Alkaline or heavy duty DC 1.5 V battery (UM4, AAA) x 6 PCs, or equivalent
DC 9V adapter input (AC/DC power adapter is optional)
Battery life: If you use a new battery (alkaline type) and sampling time is set to 60 seconds the battery life will be typically more than one month
Electrical specifications (23±5 °C):
Humidity:
Range: 10 % to 90 % R.H.
Resolution: 0.1 % R.H.
Accuracy:
≥70% RH: ± ( 4% reading + 1% RH)
< 70% RH: ± 4% RH
Temperature:
Range: 32°F to 122°F / 0°C to 50°C
Resolution: 0.1 degree
Accuracy:
°C - 0.8 °C
°F - 1.5 °F
Barometer:
Measurement
Range
Resolution
Accuracy
hPa
10.0 to 1000.0
1001 to 1100
0.1
1
± 2 hPa 1 ± 3 hPa
mmHg
7.5 to 825.0
0.1
± 1.5 mmHg
inHg
0.29 to 32.48
0.01
± 0.1 inHg
Weight: 0.63lb / 285g
Dimensions: 5.2in x 3.1in x 1.3in / 132mm x 80mm x 32mm
Can I using Aktakom Data Logger Monitor (ADLM-W) software load all of the information from the memory card to plot a graph?
The environment meter records data to the memory card in *.xls format. All of the data can be copied to the PC after the measurement process.
Aktakom Data Logger Monitor (ADLM-W) software can be used for the measurement data transmission (using Aktakom ACE-1025 interface converter) that means for online monitoring only.
AKTAKOM ATE Easy Monitor software provides the numerical indication of 4 channel measurements as well as the data recording into file in CSV format. For the device connection the use of ACE-1025/ACE-1026 USB-RS232 interface converters is required.
ADLM-w software is designed for data reading from devices of AKTAKOM ATT, ATE series, for measurement data acquisition, its processing, displaying and storage in a PC with Windows XP x32, Windows 7 x64, Windows 7x32, Windows 8 x64, Windows Vista OS.
ADLM-A software is designed for data reading from devices of AKTAKOM ATT, ATE series, for measurement data acquisition, its processing, displaying and storage in a tablet PC with Android OS of 4.0 and more advanced versions.
AKTAKOM ATE-9382 es un monitor con registro de datos en tiempo real que guarda los datos de medición a lo largo de la información de tiempo (año, mes, fecha, hora, minuto, segundo) en la tarjeta de memoria SD y se puede descargar a Excel sin ningún software adicional. Los usuarios pueden hacer los datos adicionales o el análisis gráfico por sí mismos.
Caracteristicas
Muestra el valor de humedad, temperatura y barómetro en el mismo LCD
% de resolución de HR para la lectura de humedad, resolución de 0.1 grados para la temperatura. leyendo
Se utiliza el sensor de humedad de tipo capacitancia de precisión, profesional y de alta precisión para la medición de humedad.
Barómetro profesional: hPa, mmHg, inHg
Capacidad de la tarjeta SD: 1 GB a 16 GB
Gran pantalla LCD, fácil lectura
Circuito microordenador, alta fiabilidad.
El diseño del circuito se ha diseñado para considerar un bajo consumo de energía y una larga duración de la batería cuando se utiliza la batería.
Batería DC 1.5V (UM-4, AAA) x 6 PC
Interfaz: RS-232, USB a través del convertidor de interfaz
