ATE-2450 IR Calibrator

Click an image to enlarge

Brand:
Manuals:

User's Manual (2.9 Mb)

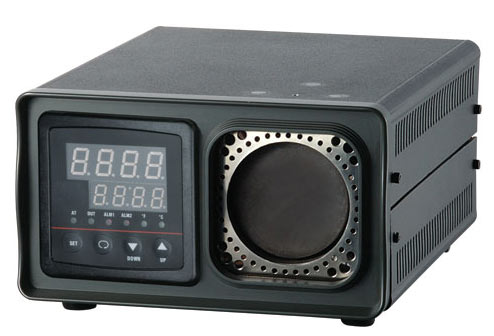

The Portable IR Calibrator BX-500 is used for calibrating long distance Infrared Thermometer, which is designed for handheld and small calibrations.

Retail price: $999.00

Check shipping cost

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)
See shipping page for international rates
or contact sales@tmatlantic.com

In stock, 2 left

Buy Add to cart

Features:

Easily certify IR pyrometers to 500°C/932°F
Large 2.25’’ (57mm) blackbody target
RTD (Resistance Thermometer detector) reference well for high precision

Power supply	110/230 V
Dimensions	7.1 x 4.5 x 9.2 in / 180 x 114 x 233 mm

Specifications:

Temperature Range: 50°C to 500°C / 122°F to 932°F
Accuracy: ±0.5°C @ 100°C / ±1.0°F @ 212°F
±1.8°C @ 500°C / ±3.6°F @ 932°F
Stability: ±0.1°C @ 100°C / ±0.2°F @ 212°F
±0.3°C @ 500°C / ±0.6°F @ 932°F
Target size: 2.25in (57mm)
Target Emissivity: 0.95
Resolution: 0.1°C/°F
Heating Time: 40 minutes to max
Cooling Time: 45 minutes to max to 100°C
Power: 230VAV (±10%), 1.5A; or 110V AC, 3A
Size: 180x114x233mm / 7.1x4.5x9.2in.
Weight: 2.7kg / 6lb.

AC power cable

El calibrador Portable de IR se utiliza para la calibración de termómetros infrarrojos de larga distancia y diseñado para calibraciones de mano y pequeño.

Características:

Fácil de certificar pirómetros infrarrojos hasta 500 ° C/932 ° F
Gran alcance de cuerpor negros 2.25’’ (57mm)
RTD (detector de resistencia del Termómetro) buena referencias y de alta precisión
