Aktakom Smart Data Monitor (ASDM)

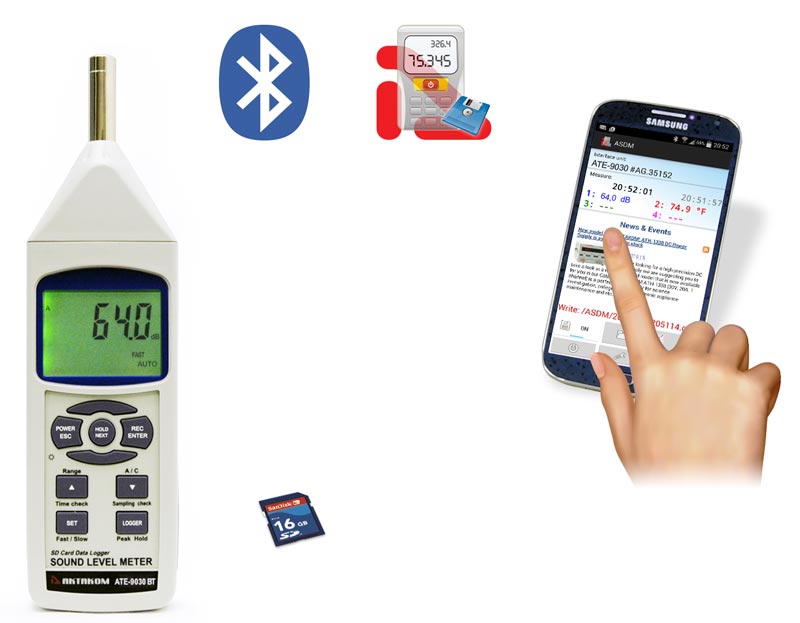

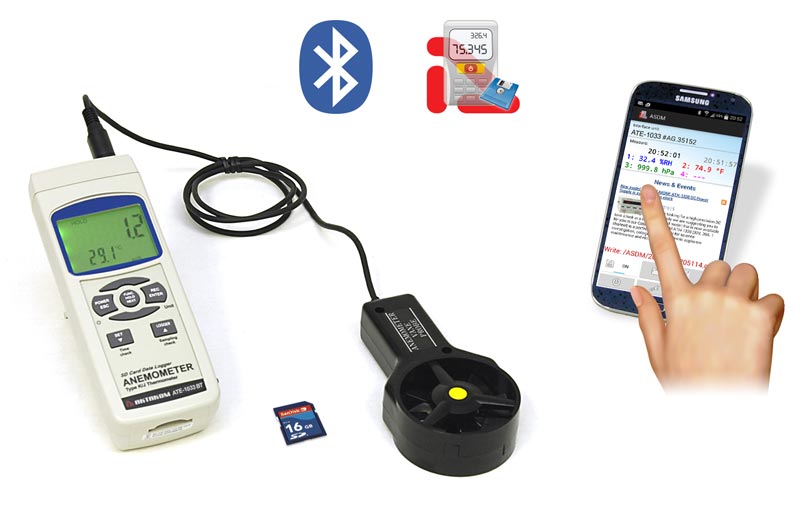

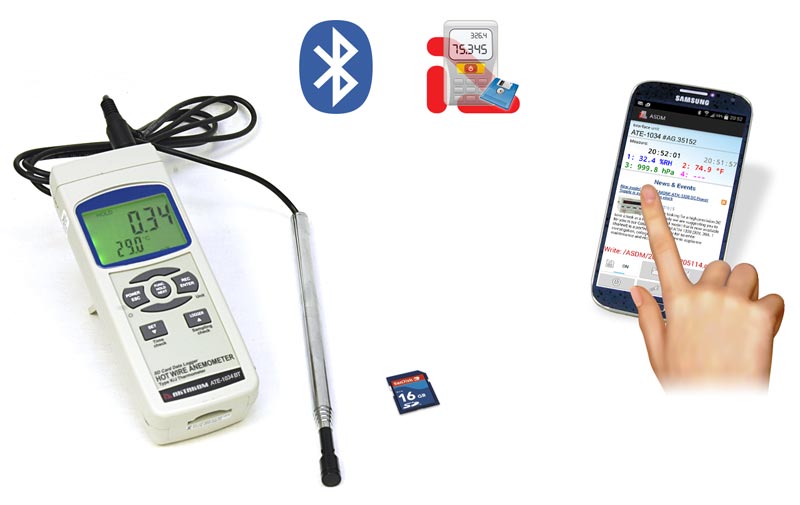

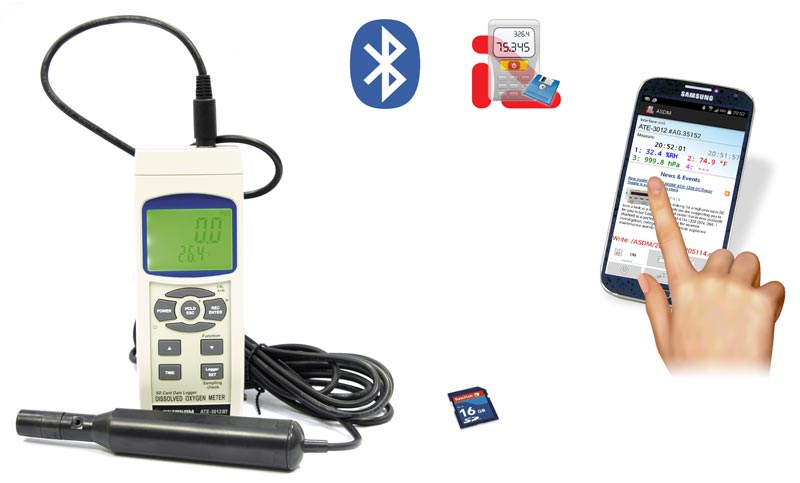

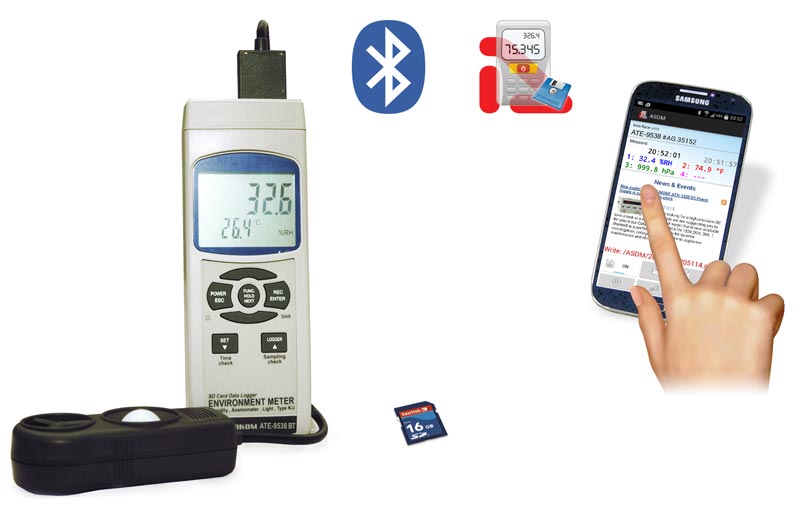

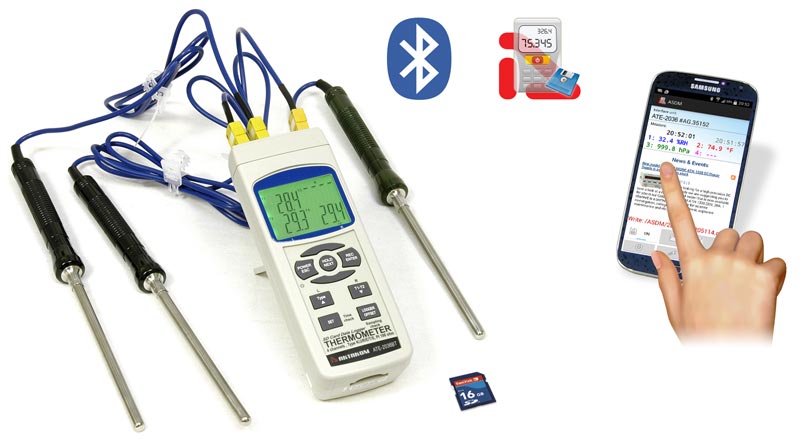

Aktakom Smart Data Monitor (ASDM) software is designed for the connection to AKTAKOM ATT and ATE series via Bluetooth interface, for measurement data acquisition, its displaying and saving to a mobile device with Android 4.0 or newer OS.

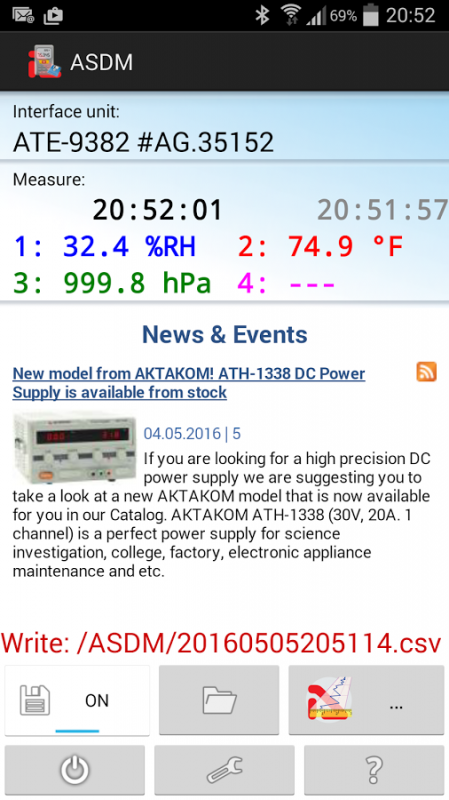

ASDM application provides the data read transmitted from the device. The program supports the measurement displaying of up to 4 channels as text fields, there is an ability to record measurements into files (* .txt, *. CSV) for external processing. In case of no device is connected ASDM software activates the demo mode that allows you to check the software functionality.

To connect any of the compatible devices to ASDM you need first to connect to a mobile device via Bluetooth. Enter pin-code 1234 to settle the connection to your tablet PC\smartphone. Then you can run AKTAKOM Smart Data Monitor. When the software is launched it automatically identifies the connected device and starts receiving the measurement data.

Frequently Asked Questions

How can I download Aktakom application?

Why does Aktakom application close right after the launch?

How can I change the temperature unit?

How can I download Aktakom application?
You need to take the following steps to download the application: Visit www.tmatlantic.com from your mobile device with Android OS Find the application page on the web site Click “Get it on Google Play” Up

Why does Aktakom application close right after the launch?
This may occur if your mobile device doesn’t have a user account on Google Play. The license approval is impossible on such a device and therefore the application gets closed. Up

How can I change the temperature unit?

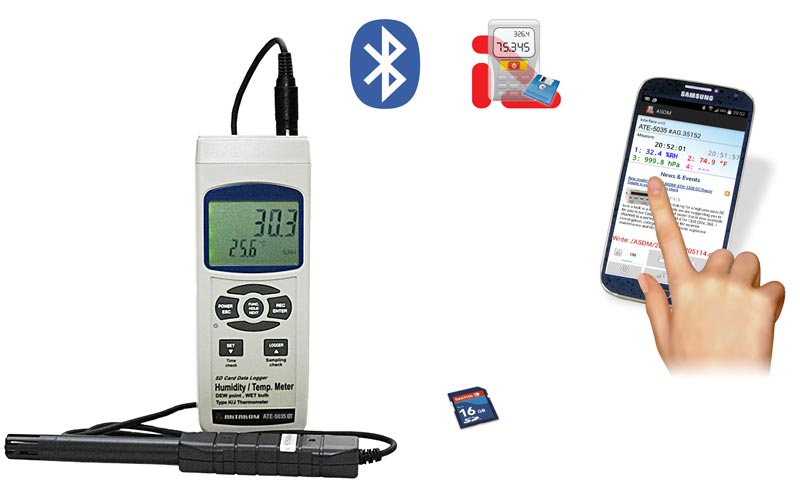

The programm displays the temperature in those units set in the device. The device settings procedure can be checked in the User Manual. As usual the settings can be changed as follows (we take Aktakom ATE-5035BT humidity/temperature meter as an example): Before changing the measurement unit you need to deactivate 2 functions: “Hold of the current value” and “Max/Min value”. Keep “SET” button pressed for minimum 2 sec. until you see “Code” symbol at the bottom of the LCD. Release “SET” button, you will see “1000” displayed at the top. After you see both “Code” and “1000” symbols press “ENTER” to activate the function of the measurement unit change. “ESC” button will return the device to the standard measurement mode. Using “SET” button set “°F”. Then press “FUNCTION” button to change the measurement unit. If you see “0” displayed at the top after you pressed “FUNCTION” the measurement unit will be “°C”. If after pressing “FUNCTION” there is “1” symbol displayed that means the measurement unit will be “°F”. After you set the required measurement unit press “ENTER” in order to confirm and save the setting. “ESC” button will return the device to the initial state. Up
