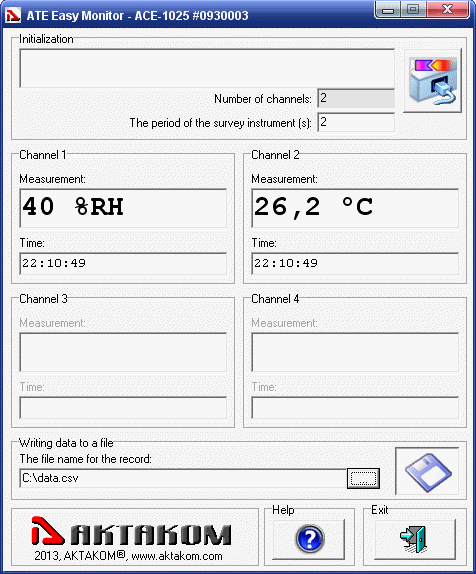

AKTAKOM ATE Easy Monitor software provides the numerical indication of 4 channel measurements as well as the data recording into file in CSV format.
“Initialization” section allows connecting to the device (when the program is run the connection is automatical) and specifying data polling period in seconds.
“Channel 1…4” sections display the received measurement results and show the time when these results were received.
“Data record into file” section allows you to select the file for data recording (CSV text format is used). After you select the file press record button to start or stop the recording of new measurement data into file.
“Help” button is used to call for the help file.
“Exit” button is used to finish the software operation.
For this program use you need to use ACE-1025 USB-RS232(TTL) interface converters or ACE-1026 depending on the compatible device type (to check the compatibility check the web page of the ACE-1025 or ACE-1026 interface converters).
AKTAKOM ATE Easy Monitor software provides the numerical indication of 4 channel measurements as well as the data recording into file in CSV format. This is the simplest variant for automation of long-termed measurements which results should be analyzed or processed in MS Exel further on.
The limitation for the file size of the recorded data is not covered by the program. The file size can be limited only by the requirements of the operating system and memory. But please note that MS Exel open CSV-type file with 64K lines.
- 1 time per second measurement corresponds to measurement data for approximately 18 hours.
- 1 time per 3 seconds measurement corresponds to measurement data for approximately 2.2 days.
- 1 time per second measurement corresponds to measurement data for approximately 3.8 days.
If you need to process data (files) with measurement results of over 64K you should use ADLM - AKTAKOM Data Logger Monitor-W (for operating system Windows including Windows 8) or AKTAKOM Data Logger Monitor-A (for Android operating system).
System requirements:
- Window XP and higher,
- USB port,
- 5 Mb of free space on the hard disk.
Standard package
The software in the standard package of the device has no physical media (CD) and can be downloaded at www.tmatlantic.com after the purchasing and registering the equipment with a serial number. This software is not free however its cost is included into device value.
We recommend you save a copy of your software. If lost: registered user can download software free of charge during warranty period. After warranty period has expired the software could be purchased and downloaded from the tmatlantic website. The software could be written on the CD and shipped to the customer for an additional fee and only upon request.

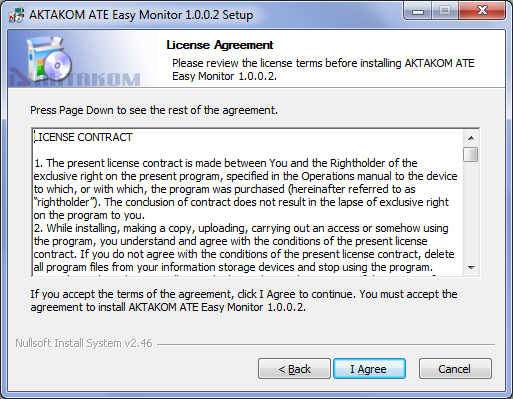

In the new version of the software, when connecting the unit for the first time, it will ask for a license (access key). It is available online after product registration. Insert the entire character set by coping and pasting it from www.tmatlantic.com. Follow the instructions on the site. We recommend that you make and keep a copy of the downloaded software. Follow the our websites news releases to receive software updates.
