P7060 Oscilloscope Probe 60 MHz 1x/10x

P7060 Oscilloscope Probe 60 MHz 1x/10x
Click an image to enlarge

Retail price: $9.50

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

Sold out

Subscribe

P7060 passive oscilloscope probe can be used together with any test instrument that has an input impedance of 1 MOhm and whose input capacitance is within the compensation range (see specifications).

For an accurate indication of the measuring signal, it is necessary to adjust the capacitance of the probe to the input capacitance of the oscilloscope. For this purpose the probe has an adjustment screw in the handling section. Learn more about probe compensation.

Specifications

  • Attenuation ratio: 1:1 and 10:1
  • Bandwidth: 6 MHz (1×), 60 MHz (10×)
  • Rise time: 58 ns (1×), 5.8 ns (10×)
  • Input impedance: 1 MOhm (1×), 10 MOhm (10×)
  • Input capacitance: 110 pF (1×), 14 pF (10×)
  • Compensation range: 10 pF...35 pF

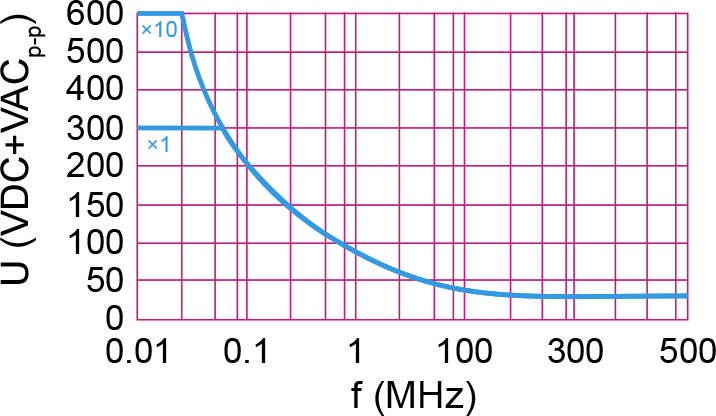

  • Max. input voltage: 300 Vp-p (1×), 600 Vp-p (10×)
  • Lead length: 1.3 m
  • Operating temperature: -10...+50 °C
  • Non-operating temperature: -20...+75 °C
  • Humidity: ≤85% RH

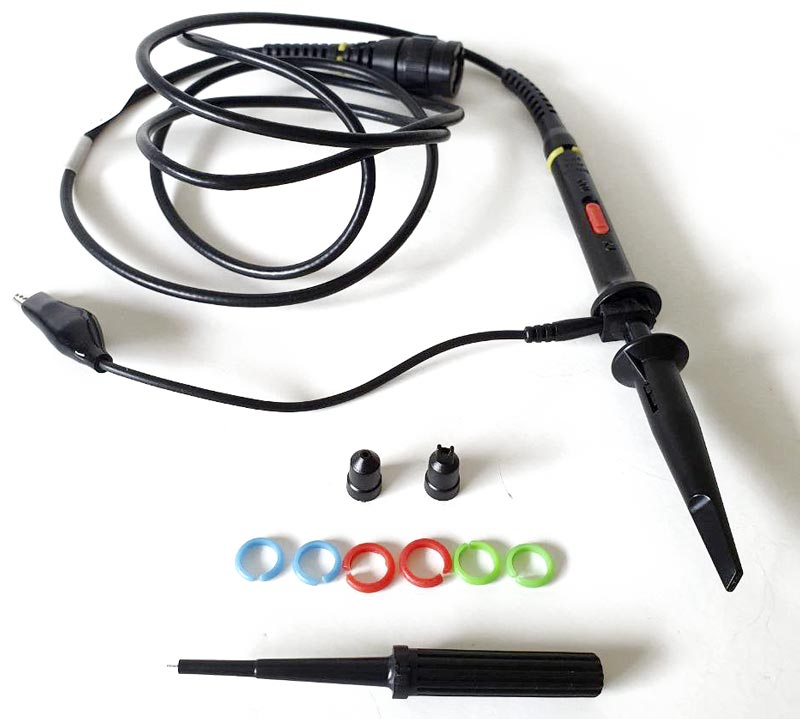

Included Accessories

  • Ground wire with crocodile clip
  • Push-on hook clip
  • Colour ring (6 pcs)
  • Regulating rod
  • Probe tip cover
  • Locating cap
